0631 00 07 Blowgun

Blowguns, blowgun kit with standard nozzle, connection below, R1/4
€81.66 *

Prices incl. VAT plus shipping costs

Delivery time: 12-13 Workdays

Total: 81.66 *
Easy and ready to use with a 4m long recoil tubing, this kit combines progressive action and... more
Product information "0631 00 07 Blowgun"
Easy and ready to use with a 4m long recoil tubing, this kit combines progressive action and ergonomic design. This blowgun is designed with a lower body air inlet and can be used with any of eleven interchangeable nozzle designs.
Colour: blue
Maximum working pressure in bar: 10
Material seal: NBR
Material nozzle: Brass nickel plated
Material body: Engineered polymer
Material threaded fitting: Brass nickel plated
Material lever: Engineered polymer
Hose length: 4 m
min. temperature in °C: -15
max. temperature in °C: 50
Material: PU
RoHS compliant: Yes
Weight in kg: 0,617

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Available downloads:

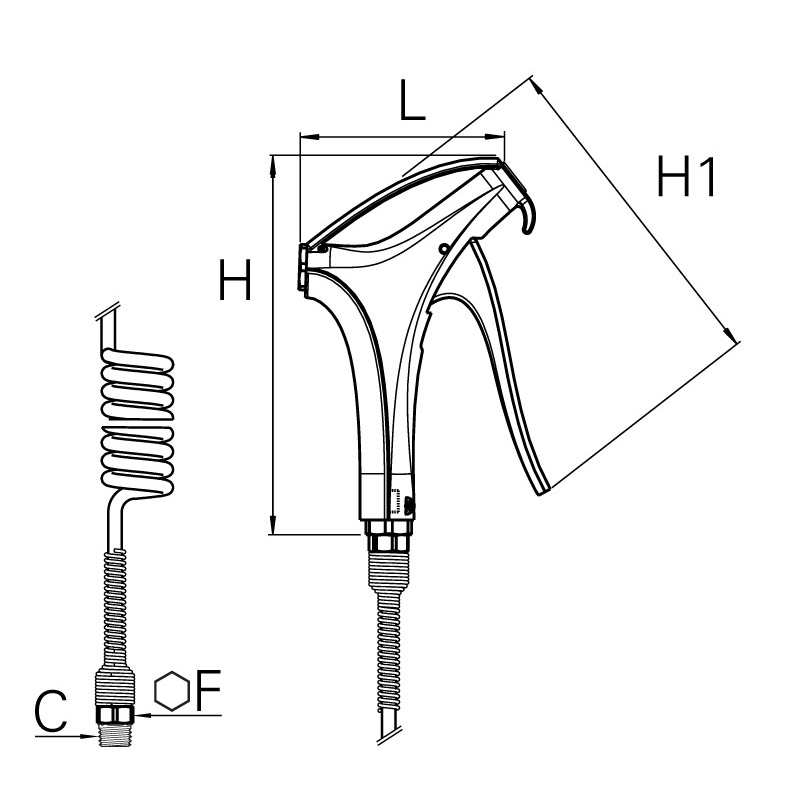

Technische Zeichnung 0631 00 07
Outer coil diameter in mm: 42
Total closed length in m: 400
C: R1/4"
F: 16
H: 163
H1: 148,5
L: 91
Outer diameter: 8 mm
Inner diameter: 5,0 mm
