0631 00 06 Blowgun

Blowguns, blowgun kit with interchangeable nozzle, connection on top, R1/4
This product is currently not available.
Price on request

Delivery time on request

Call for price
Please enter these characters in the following text field.

Fields with * are required
Easy and ready to use with a 4m long recoil tubing, this kit combines progressive action and... more
Product information "0631 00 06 Blowgun"
Easy and ready to use with a 4m long recoil tubing, this kit combines progressive action and ergonomic design. This blowgun is designed with an upper body air inlet and can be used with any of eleven interchangeable nozzle designs.
Colour: blue
Maximum working pressure in bar: 10
Material seal: NBR
Material nozzle: Brass nickel plated
Material body: Engineered polymer
Material threaded fitting: Brass nickel plated
Material lever: Engineered polymer
Hose length: 4 m
min. temperature in °C: -15
max. temperature in °C: 50
Material: PU
RoHS compliant: Yes
Weight in kg: 0,501

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Available downloads:

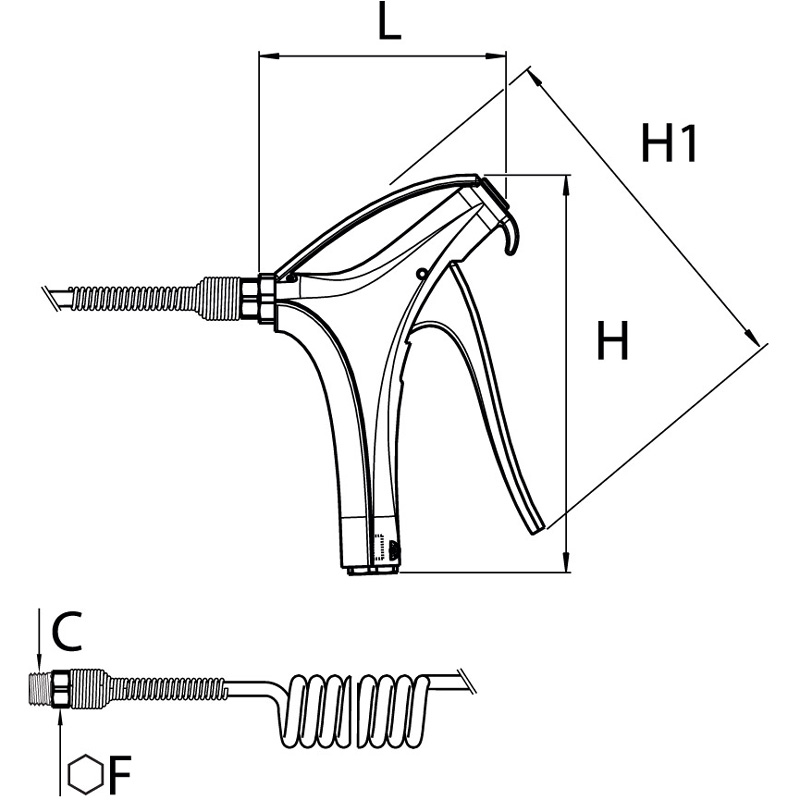

Technische Zeichnung 0631 00 06
Outer coil diameter in mm: 42
Total closed length in m: 400
C: R1/4"
F: 16
H: 161,5
H1: 148,5
L: 93
Outer diameter: 8 mm
Inner diameter: 5,0 mm
