Product information "0631 00 05 Blowgun"

Easy and ready to use with a 4m long recoil tubing, this kit combines progressive action and ergonomic design. This blowgun is designed with an lower body air supply connection point and a removeable angled tube nozzle (short) providing a powerful and progressive air jet. It is an ideal choice where access is restricted since the nozzle can be rotated through 360°.
Weight in kg: 0,536
Material: PU
Maximum working pressure in bar: 10
max. temperature in °C: 50
min. temperature in °C: -15
RoHS compliant: Yes
Hose length: 4 m
Material seal: NBR
Material nozzle: Brass nickel plated
Material body: Engineered polymer
Material threaded fitting: Brass nickel plated
Material lever: Engineered polymer
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

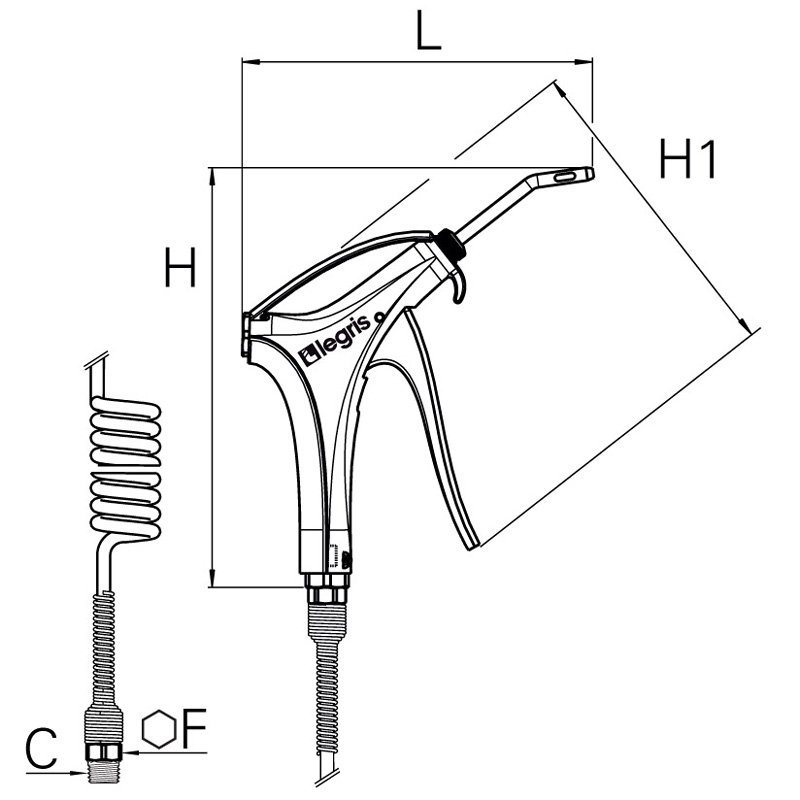

Technische Zeichnung 0631 00 05
Outer diameter: 8 mm
Total closed length in m: 400
C: R1/4"
F: 16
Colour: blue
H: 195,5
H1: 148,5
Inner diameter: 5 mm
Inner diameter: 5,0 mm
L: 163
Outer coil diameter in mm: 42
