0631 00 03 Blowgun

Blowguns, blowgun kit with standard nozzle, connection below, R1/4
This product is currently not available.
Price on request

Delivery time on request

Call for price
Please enter these characters in the following text field.

Fields with * are required
Easy and ready to use with a 4m long recoil tubing, this kit combines progressive action and... more
Product information "0631 00 03 Blowgun"
Easy and ready to use with a 4m long recoil tubing, this kit combines progressive action and ergonomic design. This blowgun is designed with a lower body air supply connection point and removeable standard nozzle (short) providing a powerful and progressi.
Colour: blue
Maximum working pressure in bar: 10
Material seal: NBR
Material nozzle: Brass nickel plated
Material body: Engineered polymer
Material threaded fitting: Brass nickel plated
Material lever: Engineered polymer
Hose length: 4 m
min. temperature in °C: -15
max. temperature in °C: 50
Material: PU
RoHS compliant: Yes
Weight in kg: 0,528

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Available downloads:

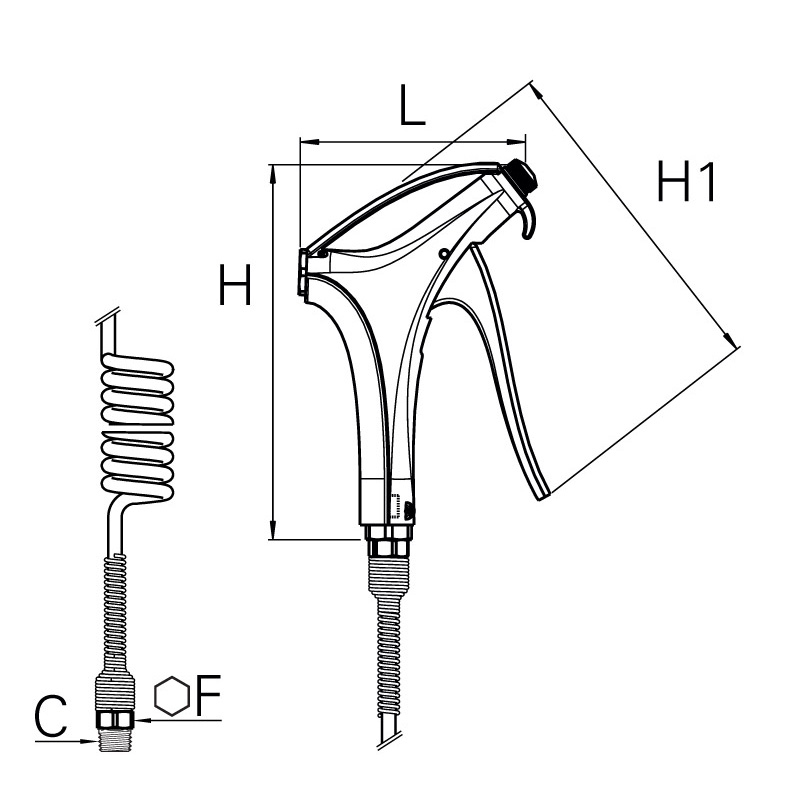

Technische Zeichnung 0631 00 03
Outer coil diameter in mm: 42
Total closed length in m: 400
C: R1/4"
F: 16
H: 165
H1: 148,5
L: 99
Outer diameter: 8 mm
Inner diameter: 5,0 mm
