0631 00 01 Blowgun

Blowguns, Safety blowgun kit, connection below, R1/4
€115.26 *

Prices incl. VAT plus shipping costs

Delivery time: 12-13 Workdays

Total: 115.26 *
Easy and ready to use with a 4m long recoil tubing, this kit combines dynamic progressive action,... more
Product information "0631 00 01 Blowgun"
Easy and ready to use with a 4m long recoil tubing, this kit combines dynamic progressive action, safety and ergonomic design. This blowgun ensures the safety of the operator and machinery thanks to an integrated pressure regulator that gives active protection for the user. Meets the legal safety.
Colour: yellow
Maximum working pressure in bar: 10
Material seal: NBR
Material nozzle: Brass nickel plated
Material body: Engineered polymer
Material threaded fitting: Brass nickel plated
Material lever: Engineered polymer
Hose length: 4 m
min. temperature in °C: -15
max. temperature in °C: 50
Material: PU
RoHS compliant: Yes
Weight in kg: 0,575

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Available downloads:

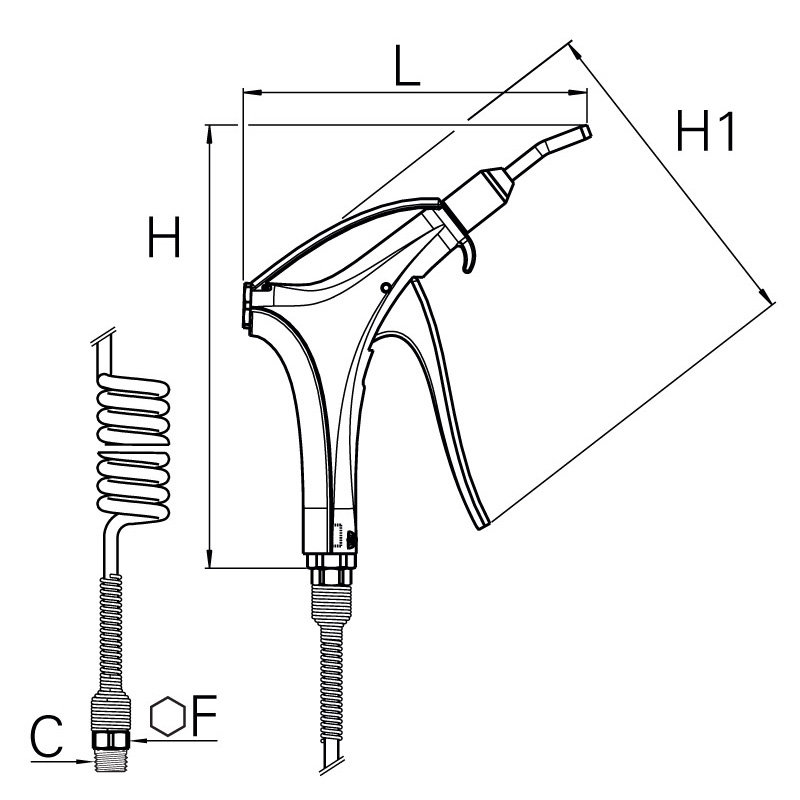

Technische Zeichnung 0631 00 01
Outer coil diameter in mm: 42
Total closed length in m: 190
C: R1/4"
F: 16
H: 198,5
H1: 148,5
L: 154
Outer diameter: 8 mm
Inner diameter: 5,0 mm
