0623 10 35 Blowgun

Lever operated blowgun, NW 2, connection G1/4
€30.13 *

Prices incl. VAT plus shipping costs

Delivery time: 7-8 Workdays

Sold only in units of 5 pieces.

Total: 30.13 *
Blowgun with a nickel plated brass body with hardened steel nozzle. It consists of a nickel... more
Product information "0623 10 35 Blowgun"
Blowgun with a nickel plated brass body with hardened steel nozzle. It consists of a nickel plated brass body and a calibrated nozzle made of phosphated, hardened C-steel.
Bore in mm: 2
Maximum working pressure in bar: 10
Material seal: NBR
Material nozzle: Steel nickel-plated
Material body: Brass nickel plated
Material lever: Treated steel
min. temperature in °C: -15
max. temperature in °C: 50
RoHS compliant: Yes
Weight in kg: 0,119

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Available downloads:

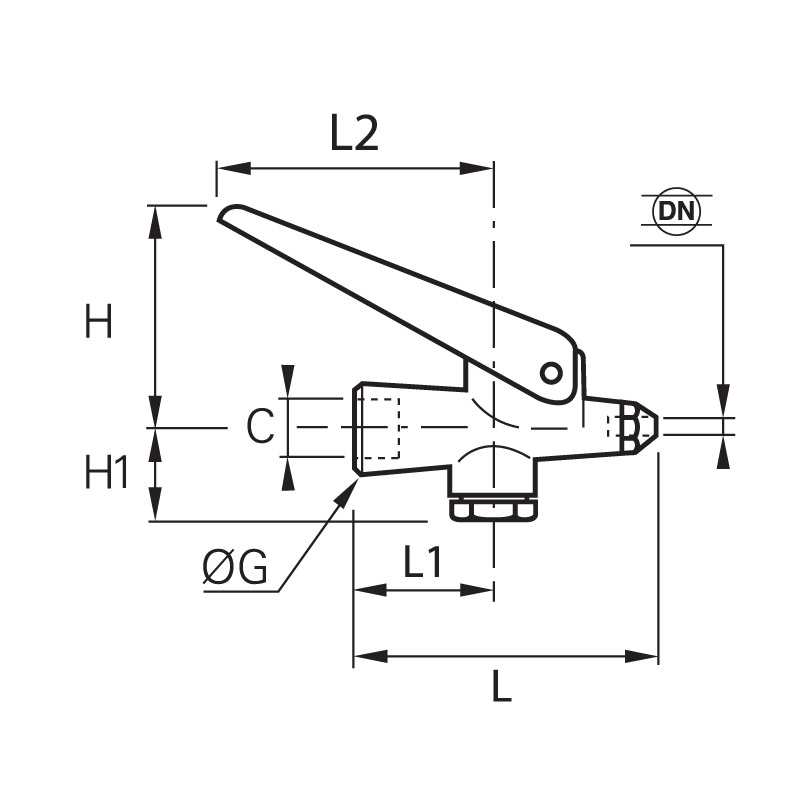

Technische Zeichnung 0623 10 35
C: G1/4"
G: 18
H min: 19
H max: 37
H1: 21
L: 64
L1: 28
L2: 60
