Product information "0563 05 14 Needle valve"

Used for venting a fluid system. Good resistance to pressure and temperature.
Weight in kg: 0,021
Maximum working pressure in bar: 120
max. temperature in °C: 100
min. temperature in °C: -20
Bore in mm: 5
RoHS compliant: Yes
Material body: Brass
Material lever: Brass
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

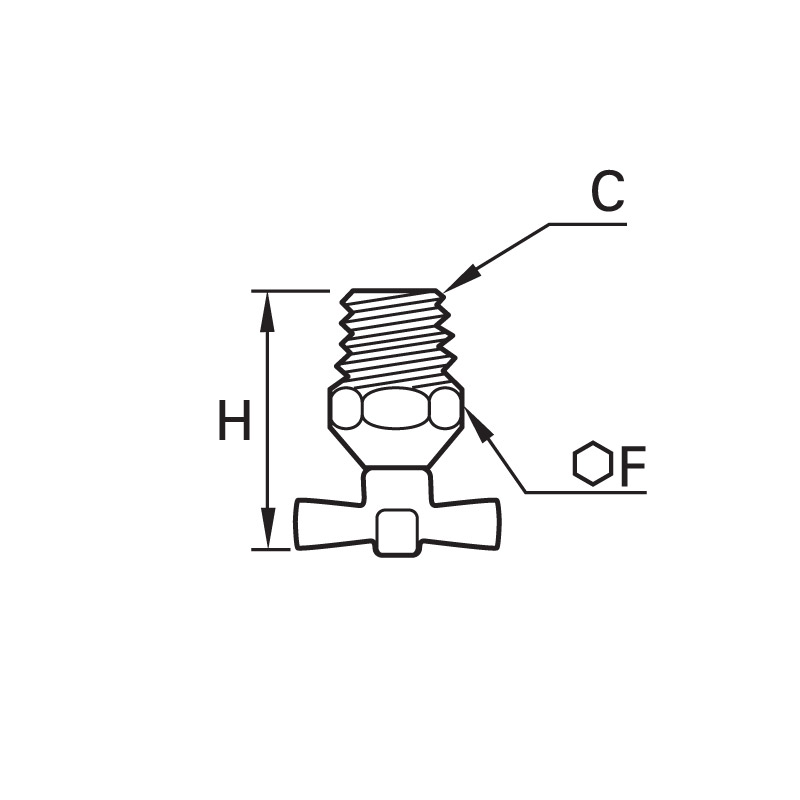

Technische Zeichnung 0563 05 14
C: NPT1/4"
F: 14
H max: 32,5
H min: 28,5
