Product name C E H min H max H1 J L Price Quantity
0532 04 10 Needle valve G1/8" 9 46 52 19 17 19

€50.44

Available in 20 days, transport time 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0532 04 13 Needle valve G1/4" 11 46 52 21 17 21

€57.39

Available in 20 days, transport time 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0532 06 13 Needle valve G1/4" 11 55 63 26 22 26

€62.46

Available, delivery time: 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "0532 - Needle valves, angled"

Used for venting a fluid system. Good resistance to pressure and temperature.
Material: Brass nickel plated
max. temperature in °C: 100
min. temperature in °C: -20
RoHS compliant: Yes
Material body: Brass nickel plated
Material locknut: Brass nickel plated
Material lever: Brass nickel plated
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

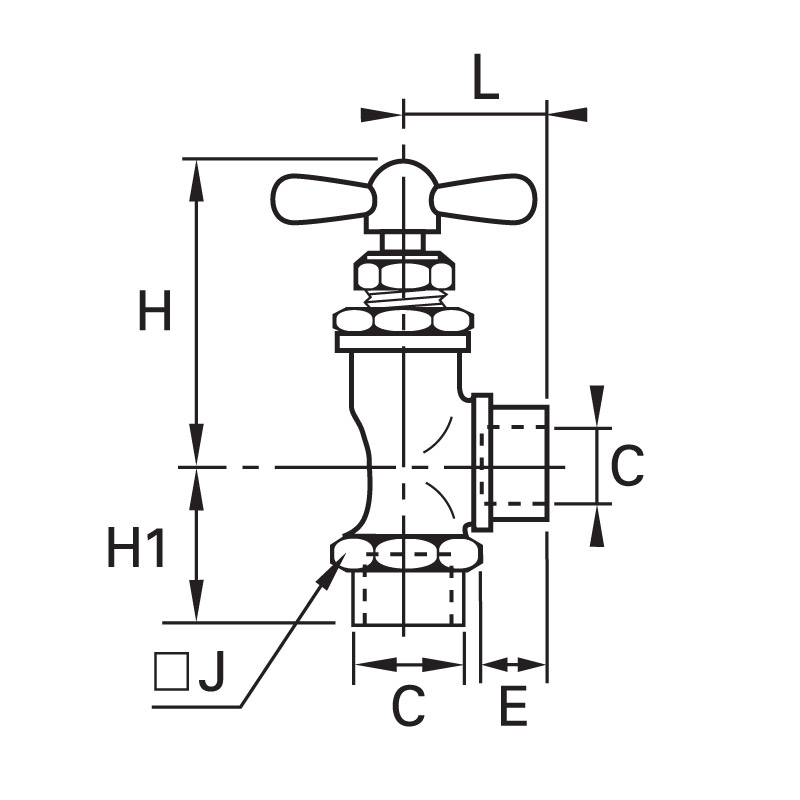

Technische Zeichnung 0532 06 13
