Excellent chemical resistance. Suited to high pressure and high temperature applications. Ideally suitable for reduced spaces thanks to its compactness.
| Material seal: | PTFE |
| Material adjusting spindle: | Stainless steel |
| Material body: | Stainless steel 303 |
| Material balls: | Stainless steel |
| Material seat seal: | PTFE |
| Material lever: | Brass chem. vernickelt |
| Material stem: | Stainless steel |
| Material plug sockets O-ring: | PTFE |

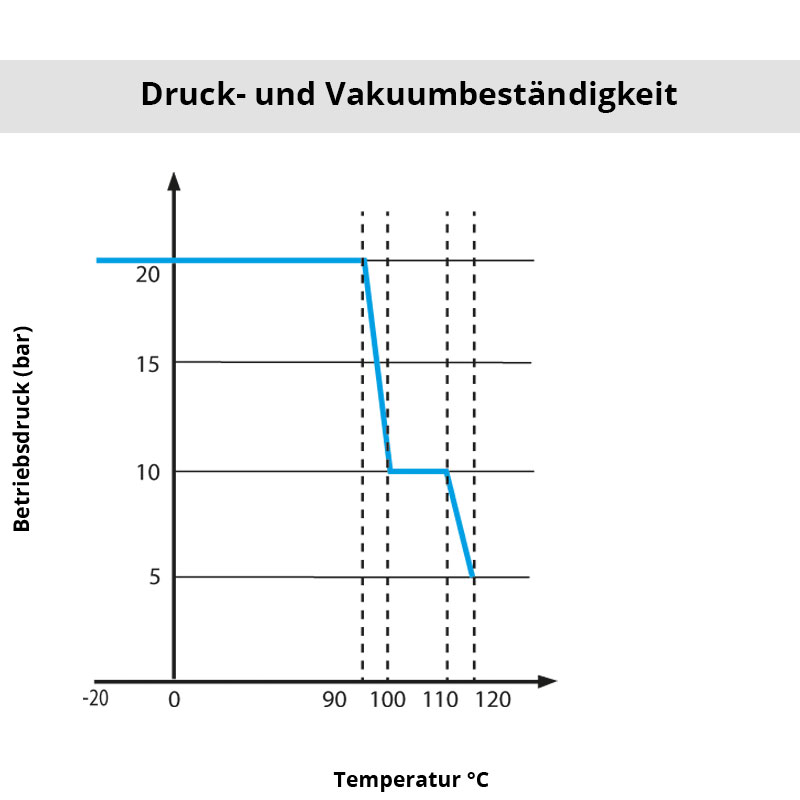

| Nominal pressure in bar: | 20 |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 120 |
| Material: | Stainless steel 303 |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
