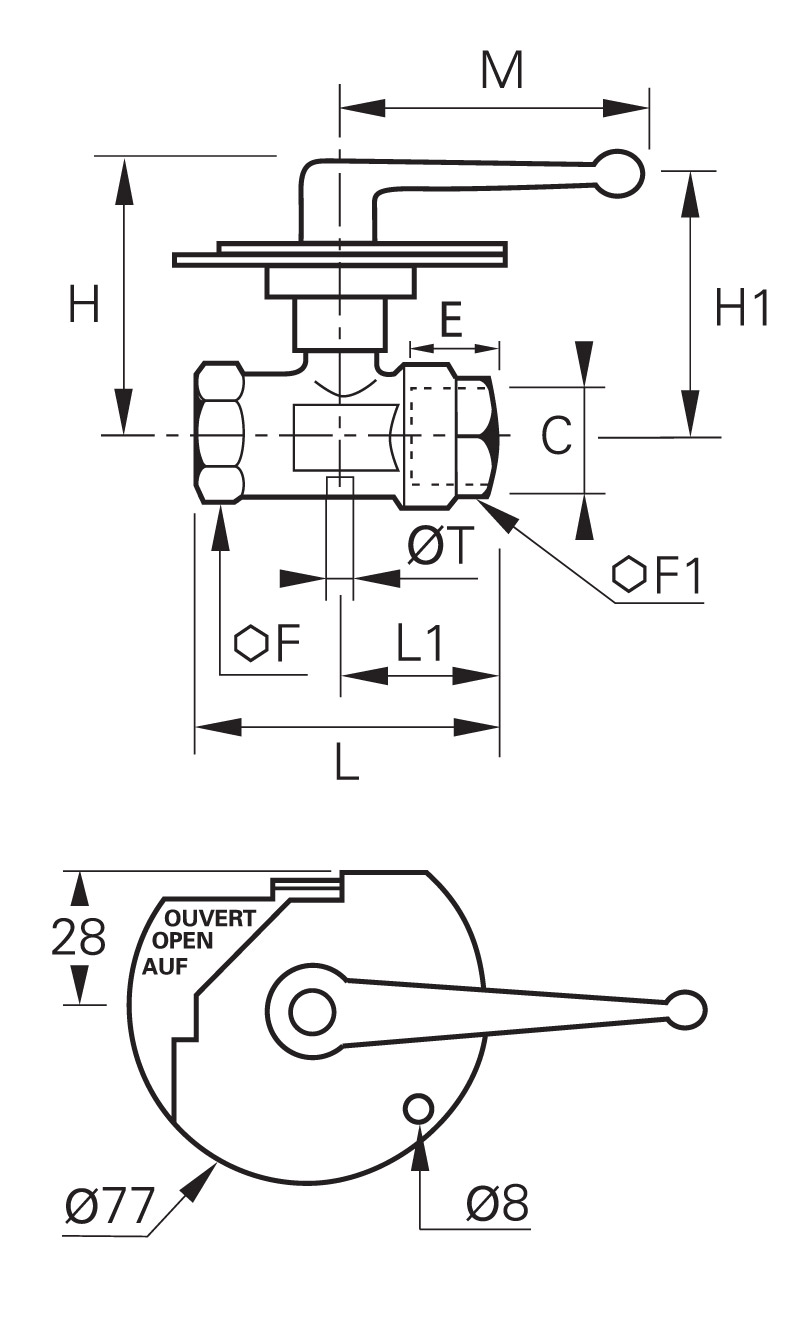

In-line ball valve for closing fluid systems with a simple quarter turn of the handle. The system is vented during closing.
- full flow
- optimum sealing due to compensating O rings
- excellent resistance to scaling due to ball seal configuration.
- full flow
- optimum sealing due to compensating O rings
- excellent resistance to scaling due to ball seal configuration.
| Material lock plate: | Galvanized steel |
| Material seal: | NBR |
| Material body: | Brass nickel plated |
| Material seat seal: | NBR |
| Material lever: | Zamac |
| Material stem: | Brass, Brass nickel plated |
| Material plug sockets O-ring: | NBR |
| min. temperature in °C: | -40 |
| max. temperature in °C: | 80 |
| Material: | Brass nickel plated |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
