The two hand safety valve generates an output signal only if two synchronised pneumatic input signals are received. If one input signal is interrupted, the output signal is interrupted as well. The most common application involves connecting a manual button-controlled valve to each of the inputs and using the output signal as a start-of-cycle control for a pneumatically-operated machine. The two hand safety valve can be secured with through screws or a DIN bar adaptor. The complete pushbutton panel includes the dual manual control valve, two manual pushbuttons, and an emergency stop valve, all housed in a metal box to be mounted on a wall or stand. The pushbutton housing is supplied on request for anyone wishing to get a personalised pneumatic connection or drill holes to secure the unit.
| Flow rate in l/min: | 85 (at 6 bar) |
| Medium suitability: | Gefilterte, ungeölte Druckluft max 50 μm |
| Connection: | Push-in fitting 4 mm outside calibrated |
| Working temperature: | -10°C – +60°C |
| Mounting position: | In any position |
| Execution: | Einzelsignal - vollständige Tasterausstattung |
| Maximum time offset between input signals in s: | 0,4 |
| Reaction time in s: | < 0,05 |
| Actuation: | Pneumatic |
| Resetting: | spring operated |
| Working pressure: | 2,5 – 8 bar |
| Bore in mm: | 2,7 |
| Material body: | Pressure die-cast and painted aluminium alloy |
| Weight in kg: | 1,783 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

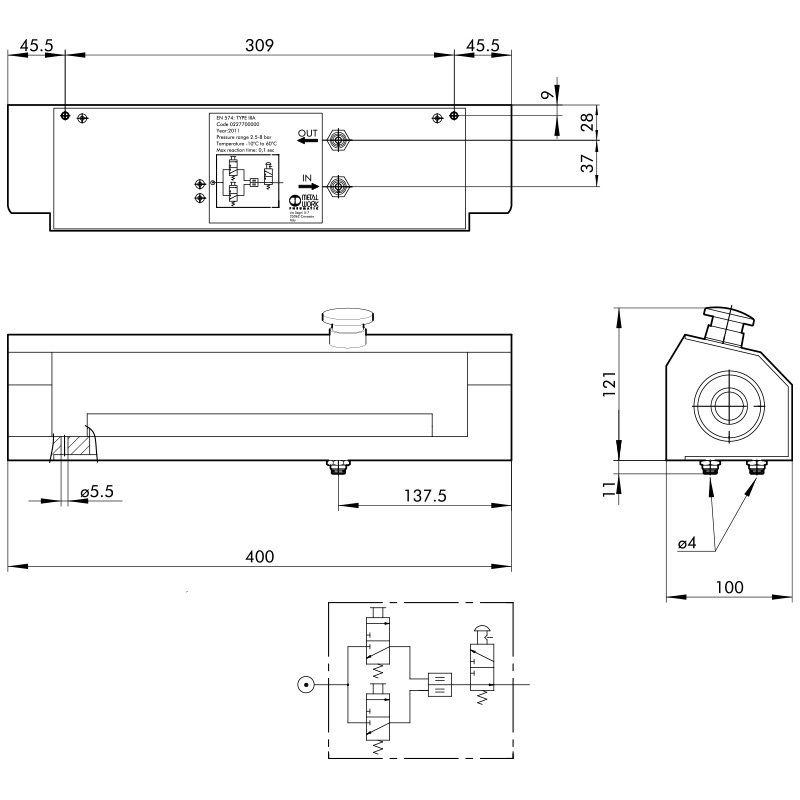

3D Modell
