The one-way shut-off mini series offers a space-saving solution for frequent connection and disconnection of hoses and pneumatic connections.
• Compact construction and ergonomic design
• Color coding: recognizing the circuits at a glance
• Easy uncoupling / one-handed operation
• Compact construction and ergonomic design
• Color coding: recognizing the circuits at a glance
• Easy uncoupling / one-handed operation
| Series: | Mini |
| Flow rate in l/min: | 165 (air) |
| Material connection: | Brass nickel plated |
| Series long: | Mini |
| Working temperature: | -20°C to +60°C (NBR) |
| Surface: | nickel plated |
| Shut-Off: | Plug Straight-Through |

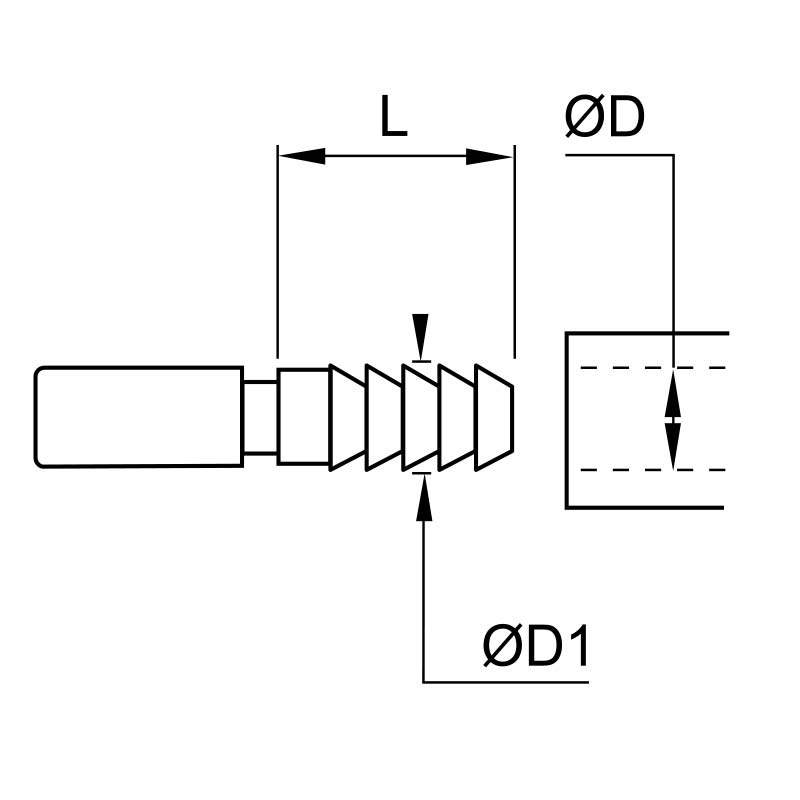

| Connection: | Hose barb 4 mm |
| Connection description: | Hose barb for flexible hoses |
| Connection type: | Hose barb |
| Connection tube outside diameter 2: | 4 |
| Connection tube outside diameter 3: | 6 |
| Bore in mm: | 3 |
| Maximum working pressure in bar: | 20 |
| Material: | Brass nickel plated |
| RoHS compliant: | Yes |
| Weight in kg: | 0,007 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
