0145 - Equal tees, female thread | maku Industrie

To be able to use maku Industrie GmbH & Co. KG in full range, we recommend activating Javascript in your browser.

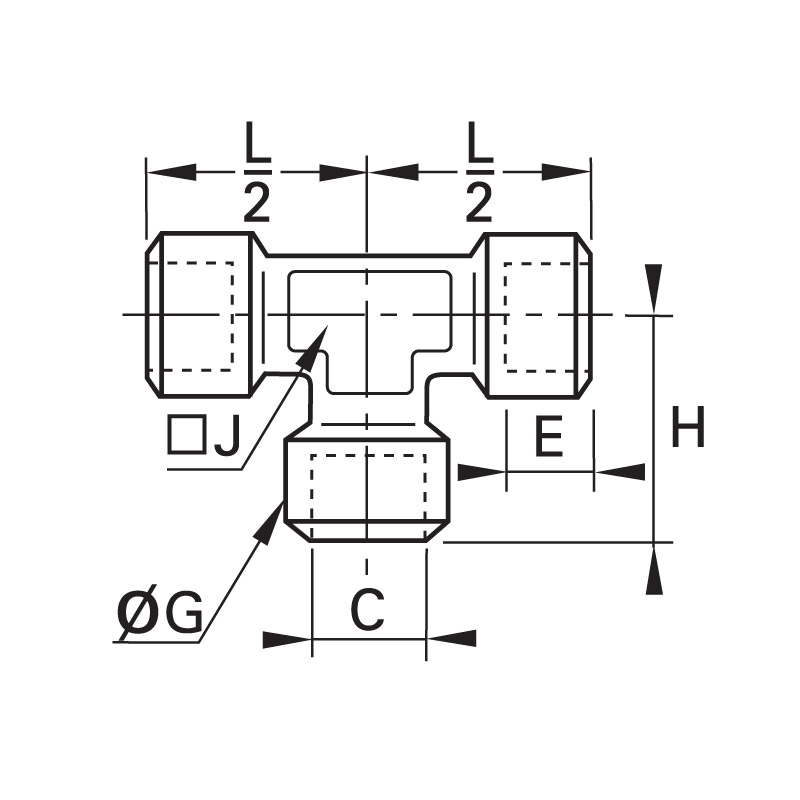

Technische Zeichnung 0145 10 10

Preview: 0145 10 10

Preview: Technische Zeichnung 0145 10 10

Fittings Brass, Equal tees, female thread, Brass

Product name	C	E	G	H	J	Price		Quantity
0145 10 10 Equal tee	G1/8"	7,5	16,5	22,5	12	€7.54	Delivery time: 12-13 Workdays
0145 13 13 Equal tee	G1/4"	11	18,5	26,5	15	€7.47	Delivery time: 3-4 workdays
0145 17 17 Equal tee	G3/8"	11,5	23,5	31	19	€10.65	Delivery time: 7-8 Workdays
0145 21 21 Equal tee	G1/2"	15	28	38	23	€17.99	Delivery time: 3-4 workdays
0145 27 27 Equal tee	G3/4"	16,5	34	47,5	27	€33.59	Delivery time: 3-4 workdays

3 ports connected at two 90° angles. Available in G 1/4 to G 3/4 threads. more

Product information "0145 - Equal tees, female thread"

3 ports connected at two 90° angles. Available in G 1/4 to G 3/4 threads.

Material body:	Brass
min. temperature in °C:	-40
max. temperature in °C:	150
Material:	Brass
RoHS compliant:	Yes

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
