0142 - Equal Y piece

Compression fittings made of brass, Equal Y piece

From €19.99 *

Available, delivery time:

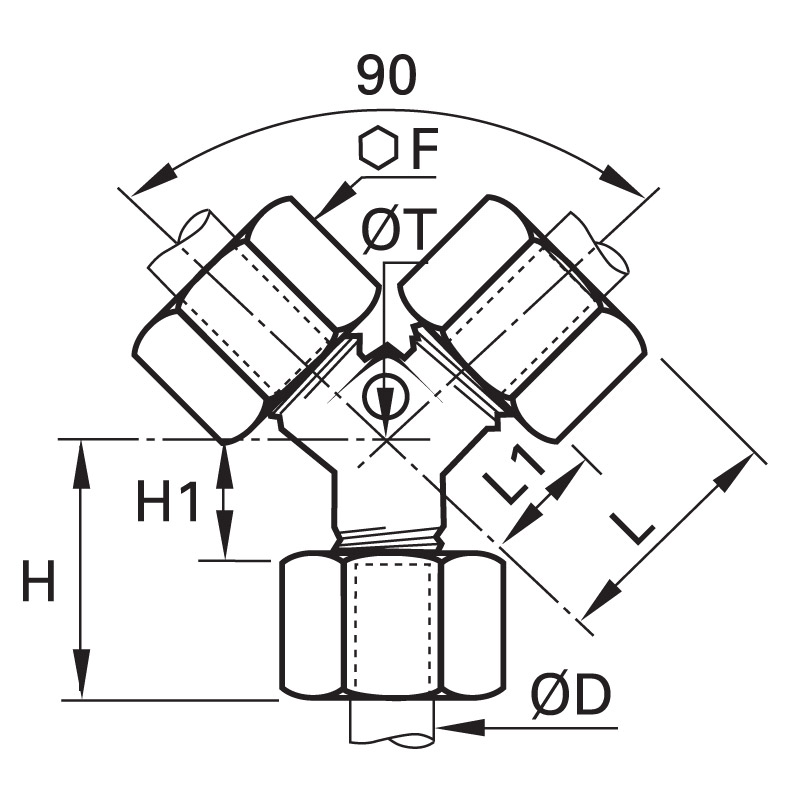

Product name	ØD	F	H max	H1	L max	L1	T	Price
0142 04 00 Equal Y piece	4 mm	10	16,5	7	26,5	17	4,2	€19.99	This article is currently not available!
0142 06 00 Equal Y piece	6 mm	13	19,5	8,5	28	17	4,2	€22.23	This article is currently not available!
0142 08 00 Equal Y piece	8 mm	14	21	8	30	17	6,2	€23.41	This article is currently not available!
0142 10 00 Equal Y piece	10 mm	19	24,5	9	37,5	22	6,2	€22.40	This article is currently not available!
0142 12 00 Equal Y piece	12 mm	22	26	11	38	23	6,2	€25.74	This article is currently not available!
0142 14 00 Equal Y piece	14 mm	24	28	11	41,5	24,5	6,2	€31.84	This article is currently not available!
0142 15 00 Equal Y piece	15 mm	24	28	11	41,5	24,5	6,2	Price on request	This article is currently not available!
0142 16 00 Equal Y piece	16 mm	27	30	12	43	25	6,2	Price on request	This article is currently not available!
0142 18 00 Equal Y piece	18 mm	30	31,5	12	50,5	31	10,2	Price on request	This article is currently not available!

Product information "0142 - Equal Y piece"

Connection of 3 tubes at two 90° angles. Available from 4 to 18 mm o.d..

Material:	Brass
Maximum working pressure in bar:	550
max. temperature in °C:	250
min. temperature in °C:	-60
RoHS compliant:	Yes
Material body:	Brass
Material gripping ring:	Brass
Material union nut:	Brass

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
