0126 - Plug for compression fittings

To be able to use maku Industrie GmbH & Co. KG in full range, we recommend activating Javascript in your browser.

Compression fittings made of brass, Plug for compression fittings

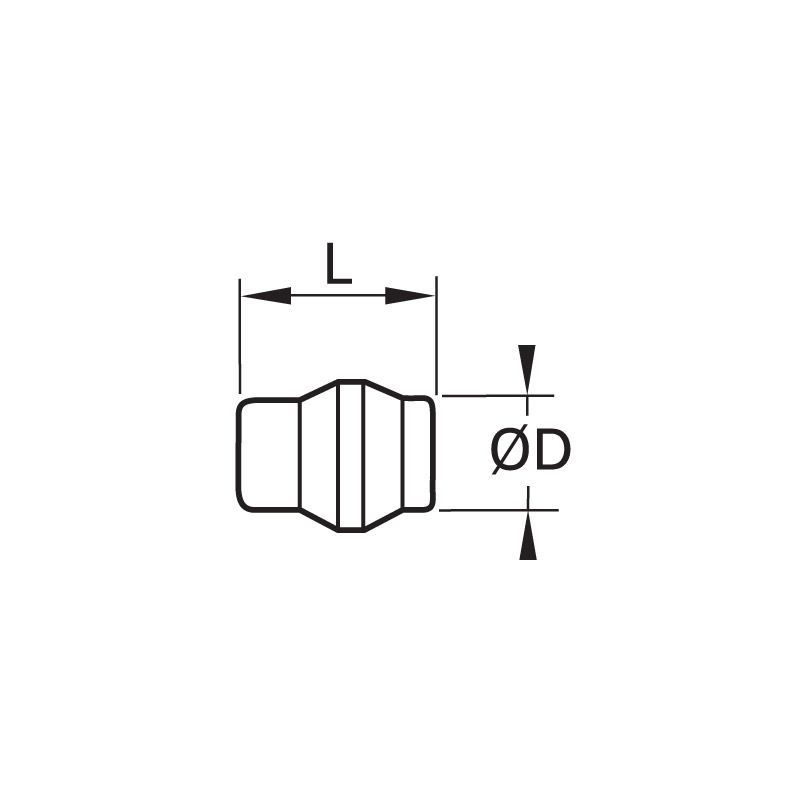

Product name	ØD	L	Price		Quantity
0126 04 00 Blanking plug	4 mm	10	€2.17	Delivery time: 32-33 Workdays
0126 05 00 Blanking plug	5 mm	10
0126 06 00 Blanking plug	6 mm	10	€3.08	Delivery time: 1-2 workdays
0126 08 00 Blanking plug	8 mm	11,5	€3.17	Delivery time: 22-23 Workdays
0126 10 00 Blanking plug	10 mm	13	€2.31	Delivery time: 22-23 Workdays
0126 12 00 Blanking plug	12 mm	13	€3.25	Delivery time: 22-23 Workdays
0126 14 00 Blanking plug	14 mm	13,5	€5.55	Delivery time: 42-43 Workdays
0126 15 00 Blanking plug	15 mm	13,5
0126 16 00 Blanking plug	16 mm	16
0126 18 00 Blanking plug	18 mm	16	€10.22	Delivery time: 32-33 Workdays
0126 20 00 Blanking plug	20 mm	16
0126 22 00 Blanking plug	22 mm	18	€15.54	Delivery time: 42-43 Workdays
0126 28 00 Blanking plug	28 mm	19,5

Used to cap off tubing in a compression fitting. The plug replaces the sleeve. Available from 4... more

Product information "0126 - Plug for compression fittings"

Used to cap off tubing in a compression fitting. The plug replaces the sleeve. Available from 4 to 28 mm o.d..

Maximum working pressure in bar:	550
Material body:	Brass
min. temperature in °C:	-60
max. temperature in °C:	250
Material:	Brass
RoHS compliant:	Yes

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
