0125 - Tube end plug for compression fittings

Compression fittings made of brass, Tube end plug for compression fittings

From €3.57 *

Available, delivery time:

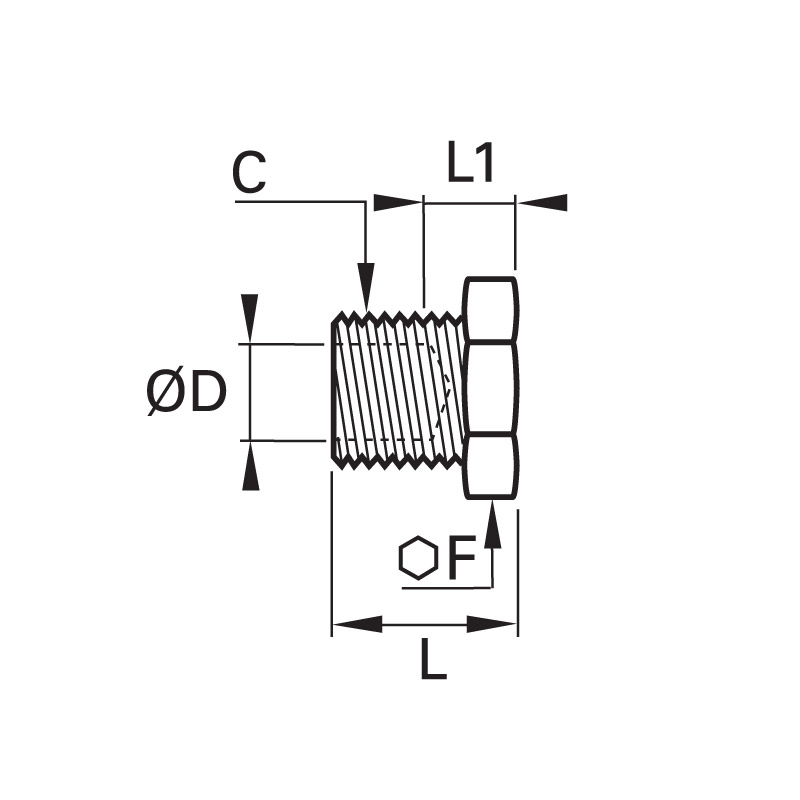

Product name	C	ØD	F	L	L1	Price		Quantity
0125 04 00 Tube end plug	M8x1	4 mm	10	12	8	€3.57	Available in 70 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0125 06 00 Tube end plug	M10x1	6 mm	11	13,5	9,5	€5.33	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0125 08 00 Tube end plug	M12x1	8 mm	14	14	9	€5.95	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0125 10 00 Tube end plug	M16x1,5	10 mm	17	18	11	€8.71	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0125 12 00 Tube end plug	M18x1,5	12 mm	19	18	11	Price on request	This article is currently not available!
0125 14 00 Tube end plug	M20x1,5	14 mm	22	19	11	Price on request	This article is currently not available!

Product information "0125 - Tube end plug for compression fittings"

Used to cap off unused tubing, comprising a sleeve and a nut in a compression fitting. Available from 4 to 14 mm o.d..

Material:	Brass
Maximum working pressure in bar:	550
max. temperature in °C:	250
min. temperature in °C:	-60
RoHS compliant:	Yes
Material body:	Brass

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
