0118 - Single banjo elbow connections

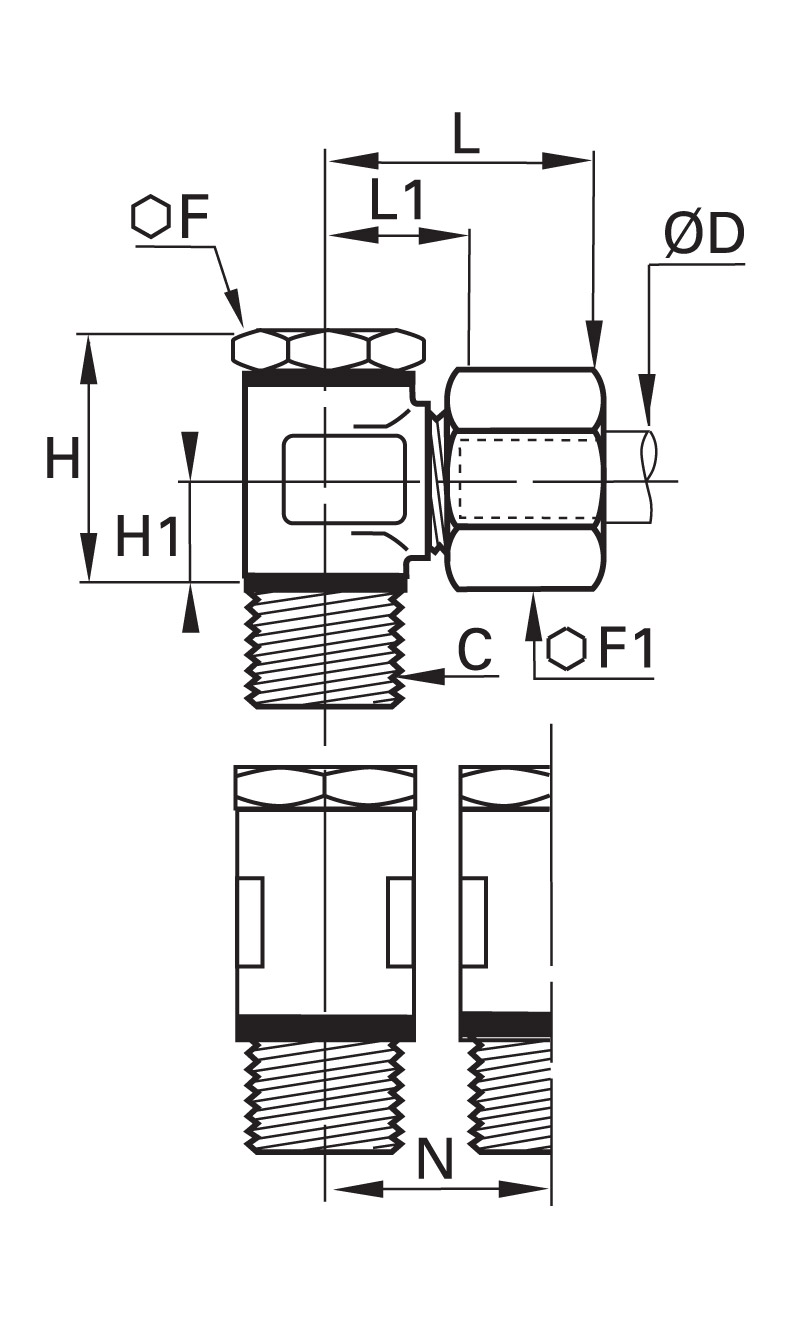

Preview: Technische Zeichnung 0118 04 10

Compression fittings made of brass, Single banjo elbow connections

Product name	ØD	C	F	F1	H	H1	L max	L1	N	Price		Quantity
0118 04 10 Single banjo elbow connection	4 mm	G1/8"	14	10	24	9,5	24	14,5	17,5
0118 04 10 39 Single banjo elbow connection	4 mm	G1/8"	14	10	23	9,5	24	14,5	17,5	€17.75	Delivery time: 22-23 Workdays
0118 05 10 Single banjo elbow connection	5 mm	G1/8"	14	12	24	9,5	25	14,5	17,5
0118 05 10 39 Single banjo elbow connection	5 mm	G1/8"	14	12	23	9,5	25	14,5	17,5	€22.24	Delivery time: 42-43 Workdays
0118 05 13 Single banjo elbow connection	5 mm	G1/4"	17	12	25	10	26	16	21
0118 05 13 39 Single banjo elbow connection	5 mm	G1/4"	17	12	24	10	26	16	21	€15.78	Delivery time on request
0118 06 10 Single banjo elbow connection	6 mm	G1/8"	14	13	24	9,5	25	14,5	17,5
0118 06 10 39 Single banjo elbow connection	6 mm	G1/8"	14	13	23	9,5	25	14,5	17,5	€15.42	Delivery time: 1-2 workdays
0118 06 13 Single banjo elbow connection	6 mm	G1/4"	17	13	25	10	26	16	21
0118 06 13 39 Single banjo elbow connection	6 mm	G1/4"	17	13	24	10	26	16	21	€18.71	Delivery time: 22-23 Workdays
0118 08 10 Single banjo elbow connection	8 mm	G1/8"	14	14	24	9,5	28	15,5	17,5
0118 08 10 39 Single banjo elbow connection	8 mm	G1/8"	14	14	23	9,5	28	15,5	17,5	€17.66	Delivery time: 7-8 Workdays
0118 08 13 Single banjo elbow connection	8 mm	G1/4"	17	14	25	10	28	15,5	21
0118 08 13 39 Single banjo elbow connection	8 mm	G1/4"	17	14	24	10	28	15,5	21	€17.06	Delivery time: 7-8 Workdays
0118 08 17 Single banjo elbow connection	8 mm	G3/8"	22	14	32	13	30	18	26,5
0118 08 17 39 Single banjo elbow connection	8 mm	G3/8"	22	14	31,5	13,5	30	18	26,5	€33.36	Delivery time: 52-53 Workdays
0118 10 13 Single banjo elbow connection	10 mm	G1/4"	17	19	31	13	34	19	23
0118 10 13 39 Single banjo elbow connection	10 mm	G1/4"	17	19	30	13	34	19	23	€28.54	Delivery time: 7-8 Workdays
0118 10 17 Single banjo elbow connection	10 mm	G3/8"	22	19	32	13	34	19	26,5
0118 10 17 39 Single banjo elbow connection	10 mm	G3/8"	22	19	31,5	13,5	34	19	26,5	€35.37	Delivery time: 7-8 Workdays
0118 12 13 Single banjo elbow connection	12 mm	G1/4"	17	22	34	14,5	34	19	23
0118 12 13 39 Single banjo elbow connection	12 mm	G1/4"	17	22	33	14,5	34	19	23	€30.42	Delivery time: 42-43 Workdays
0118 12 17 Single banjo elbow connection	12 mm	G3/8"	22	22	35	14,5	34	19	26,5	€15.67	Delivery time: 1-2 workdays
0118 12 17 39 Single banjo elbow connection	12 mm	G3/8"	22	22	34,5	15	34	19	26,5	€32.71	Delivery time: 12-13 Workdays
0118 14 13 Single banjo elbow connection	14 mm	G1/4"	17	24	37	16	37	20,5	28	€30.51	Delivery time on request
0118 14 13 39 Single banjo elbow connection	14 mm	G1/4"	17	24	36	16	37	20,5	28	€54.78	Delivery time: 52-53 Workdays
0118 14 17 Single banjo elbow connection	14 mm	G3/8"	22	24	38	16	37	20,5	28	€31.86	Delivery time: 1-2 workdays
0118 14 17 39 Single banjo elbow connection	14 mm	G3/8"	22	24	37,5	16,5	37	20,5	28	€58.52	Delivery time: 1-2 workdays
0118 14 21 Single banjo elbow connection	14 mm	G1/2"	27	24	40	16	38	20,5	32,5
0118 14 21 39 Single banjo elbow connection	14 mm	G1/2"	27	24	39	16,5	38	20,5	32,5	€64.30	Delivery time: 22-23 Workdays
0118 15 17 Single banjo elbow connection	15 mm	G3/8"	22	24	38	16	37	20,5	28
0118 15 17 39 Single banjo elbow connection	15 mm	G3/8"	22	24	37,5	16,5	37	20,5	28
0118 15 21 Single banjo elbow connection	15 mm	G1/2"	27	24	40	16	38	20,5	32,5
0118 15 21 39 Single banjo elbow connection	15 mm	G1/2"	27	24	40	16,5	38	20,5	32,5	€59.75	Delivery time: 52-53 Workdays
0118 16 21 Single banjo elbow connection	16 mm	G1/2"	27	27	42	16	38	21	32,5
0118 16 21 39 Single banjo elbow connection	16 mm	G1/2"	27	27	40	16,5	38	21	32,5	€61.39	Delivery time: 22-23 Workdays
0118 18 21 Single banjo elbow connection	18 mm	G1/2"	27	30	46	19,5	43	24,5	36
0118 18 21 39 Single banjo elbow connection	18 mm	G1/2"	27	30	47	20	43	24,5	36	€84.24	Delivery time on request
0118 20 27 Single banjo elbow connection	20 mm	G3/4"	32	32	49	20	44	24,5	39
0118 20 27 39 Single banjo elbow connection	20 mm	G3/4"	32	32	50	20,5	44	24,5	39	€67.73	Delivery time on request
0118 22 27 Single banjo elbow connection	22 mm	G3/4"	32	36	53	22	45	24,5	39
0118 22 27 39 Single banjo elbow connection	22 mm	G3/4"	32	36	54	22,5	45	24,5	39	€98.34	Delivery time on request

Single banjo elbow connection between tube and male thread. In space constrained environments it... more

Close menu

Product information "0118 - Single banjo elbow connections"

Single banjo elbow connection between tube and male thread. In space constrained environments it can be mounted from above with a spanner. Available form 4 to 22 mm o.d..

Maximum working pressure in bar:	550
Material seal ring:	Engineered polymer
Material adjusting spindle:	Brass
Material body:	Brass
Material gripping ring:	Brass
Material union nut:	Brass
min. temperature in °C:	-60
max. temperature in °C:	250
Material:	Brass
RoHS compliant:	Yes
