0116 - Bulkhead couplings

Compression fittings made of brass, Bulkhead couplings

From €9.23 *

Available, delivery time:

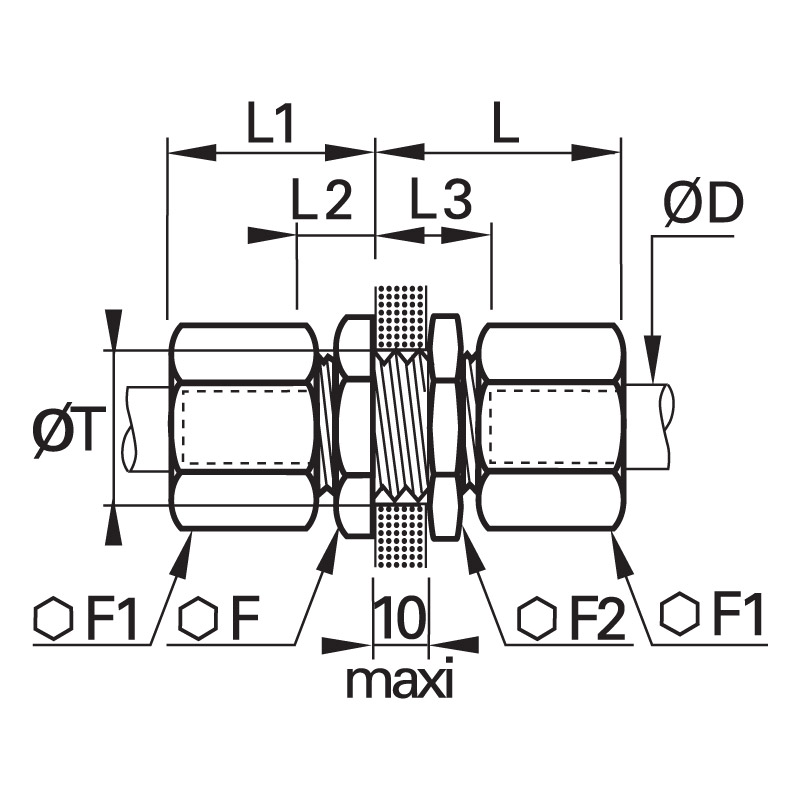

Product name	ØD	F	F1	F2	L max	T min	L1 max	L2	L3	Price		Quantity
0116 04 00 Bulkhead coupling	4 mm	10	10	13	27	8,3	17	7	17	€9.23	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0116 05 00 Bulkhead coupling	5 mm	13	12	14	28	10,3	18	7,5	17,5	€10.64	Available in 50 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0116 06 00 Bulkhead coupling	6 mm	13	13	14	28	10,3	19	7,5	17,5	€9.88	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0116 08 00 Bulkhead coupling	8 mm	14	14	17	29	12,3	20	7	17	€10.06	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0116 10 00 Bulkhead coupling	10 mm	19	19	22	33	16,5	25	9	19	€18.97	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0116 12 00 Bulkhead coupling	12 mm	22	22	22	33	18,5	25	9	19	€23.88	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0116 14 00 Bulkhead coupling	14 mm	24	24	27	35	20,5	25	8	18	€27.88	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0116 15 00 Bulkhead coupling	15 mm	24	24	24	35	20,5	25	8	18	€35.66	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0116 16 00 Bulkhead coupling	16 mm	27	27	27	36	22,5	28	9,5	19,5	€43.84	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0116 18 00 Bulkhead coupling	18 mm	27	30	30	40	24,5	30	10,5	20,5	€56.05	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0116 20 00 Bulkhead coupling	20 mm	32	30	32	41	27,5	31	11	21	€87.10	Available in 50 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0116 22 00 Bulkhead coupling	22 mm	36	36	36	42	30,5	32	11	21	€100.16	Available in 50 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0116 25 00 Bulkhead coupling	25 mm	36	41	38	46	33,5	36	11	21	Price on request	This article is currently not available!

Product information "0116 - Bulkhead couplings"

Connection of 2 tubes together at a 180° angle through a panel. Available from 4 to 25 mm o.d..

Material:	Brass
Maximum working pressure in bar:	550
max. temperature in °C:	250
min. temperature in °C:	-60
RoHS compliant:	Yes
Material body:	Brass
Material gripping ring:	Brass
Material stem:	Brass
Material union nut:	Brass

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
