0114 - Male stud couplings

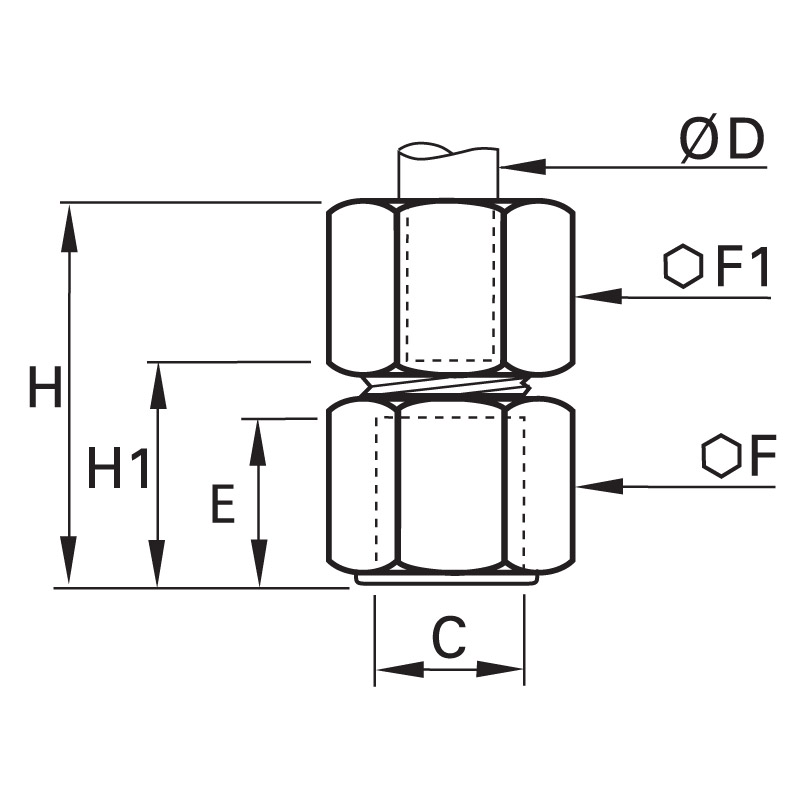

Preview: Technische Zeichnung 0114 04 10

Compression fittings made of brass, Male stud couplings

Product name	ØD	C	E	F	F1	H max	H1	Price		Quantity
0114 04 10 Male stud coupling	4 mm	G1/8"	9,5	14	10	26	16,5	€5.20	Delivery time: 22-23 Workdays
0114 04 13 Male stud coupling	4 mm	G1/4"	13,5	17	10	30	20,5	€6.24	Delivery time: 22-23 Workdays
0114 05 10 Male stud coupling	5 mm	G1/8"	9,5	14	12	28	17	€7.21	Delivery time: 22-23 Workdays
0114 05 13 Male stud coupling	5 mm	G1/4"	13,5	17	12	31	21	€9.46	Delivery time: 52-53 Workdays
0114 06 10 Male stud coupling	6 mm	G1/8"	9,5	14	13	28	17	€5.40	Delivery time: 1-2 workdays
0114 06 13 Male stud coupling	6 mm	G1/4"	13,5	17	13	32	21	€6.44	Delivery time: 12-13 Workdays
0114 06 17 Male stud coupling	6 mm	G3/8"	14	22	13	32	21,5	€10.51	Delivery time: 22-23 Workdays
0114 08 10 Male stud coupling	8 mm	G1/8"	9,5	14	14	29	16,5	€6.37	Delivery time: 12-13 Workdays
0114 08 13 Male stud coupling	8 mm	G1/4"	13,5	17	14	33	20,5	€6.56	Delivery time: 3-4 workdays
0114 08 17 Male stud coupling	8 mm	G3/8"	14	22	14	34	21	€10.85	Delivery time: 22-23 Workdays
0114 10 13 Male stud coupling	10 mm	G1/4"	13,5	17	19	37	21,5	€9.94	Delivery time: 17-18 Workdays
0114 10 17 Male stud coupling	10 mm	G3/8"	14	22	19	37	22	€11.45	Delivery time: 22-23 Workdays
0114 10 21 Male stud coupling	10 mm	G1/2"	18,5	27	19	42	26,5	€14.32	Delivery time: 17-18 Workdays
0114 12 13 Male stud coupling	12 mm	G1/4"	13,5	19	22	36	20,5	€12.67	Delivery time: 22-23 Workdays
0114 12 17 Male stud coupling	12 mm	G3/8"	14	22	22	37	22	€13.28	Delivery time: 1-2 workdays
0114 12 21 Male stud coupling	12 mm	G1/2"	18,5	27	22	42	26,5	€17.04	Delivery time: 17-18 Workdays
0114 14 13 Male stud coupling	14 mm	G1/4"	13,5	22	24	36	18,5	€15.34	Delivery time: 52-53 Workdays
0114 14 17 Male stud coupling	14 mm	G3/8"	14	22	24	38	21	€15.91	Delivery time: 22-23 Workdays
0114 14 21 Male stud coupling	14 mm	G1/2"	18,5	27	24	43	25,5	€17.09	Delivery time: 22-23 Workdays
0114 15 17 Male stud coupling	15 mm	G3/8"	14	22	24	38	21	€20.65	Delivery time: 52-53 Workdays
0114 15 21 Male stud coupling	15 mm	G1/2"	18,5	27	24	43	25,5	€22.55	Delivery time: 52-53 Workdays
0114 16 13 Male stud coupling	16 mm	G1/4"	13,5	24	27	36	18	€29.33	Delivery time: 52-53 Workdays
0114 16 17 Male stud coupling	16 mm	G3/8"	14	24	27	38	20,5	€31.32	Delivery time: 52-53 Workdays
0114 16 21 Male stud coupling	16 mm	G1/2"	18,5	27	27	44	26	€33.14	Delivery time: 22-23 Workdays
0114 18 17 Male stud coupling	18 mm	G3/8"	14	27	30	39	19,5	€37.63	Delivery time: 52-53 Workdays
0114 18 21 Male stud coupling	18 mm	G1/2"	18,5	27	30	45	26	€38.88	Delivery time: 52-53 Workdays
0114 18 27 Male stud coupling	18 mm	G3/4"	19,5	32	30	46	27	€39.64	Delivery time: 52-53 Workdays
0114 20 17 Male stud coupling	20 mm	G3/8"	14	30	32	38	18	€36.75	Delivery time on request
0114 20 21 Male stud coupling	20 mm	G1/2"	18,5	30	32	44,5	24	€50.74	Delivery time: 52-53 Workdays
0114 20 27 Male stud coupling	20 mm	G3/4"	19,5	32	32	47	26,5	€51.30	Delivery time: 52-53 Workdays
0114 22 27 Male stud coupling	22 mm	G3/4"	19,5	32	36	48	26,5	€54.24	Delivery time: 22-23 Workdays
0114 25 27 Male stud coupling	25 mm	G3/4"	19,5	36	41	50,5	26

In-line connection of tubing with female thread. Available from 4 to 25 mm o.d. and BSPP thread. more

Close menu

Product information "0114 - Male stud couplings"

In-line connection of tubing with female thread. Available from 4 to 25 mm o.d. and BSPP thread.

Maximum working pressure in bar:	550
Material body:	Brass
Material gripping ring:	Brass
Material union nut:	Brass
min. temperature in °C:	-60
max. temperature in °C:	250
Material:	Brass
RoHS compliant:	Yes

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
