0112 - Male sleeve nut for standard olive

Compression fittings made of brass, Male sleeve nut for standard olive

From €2.13 *

Available, delivery time:

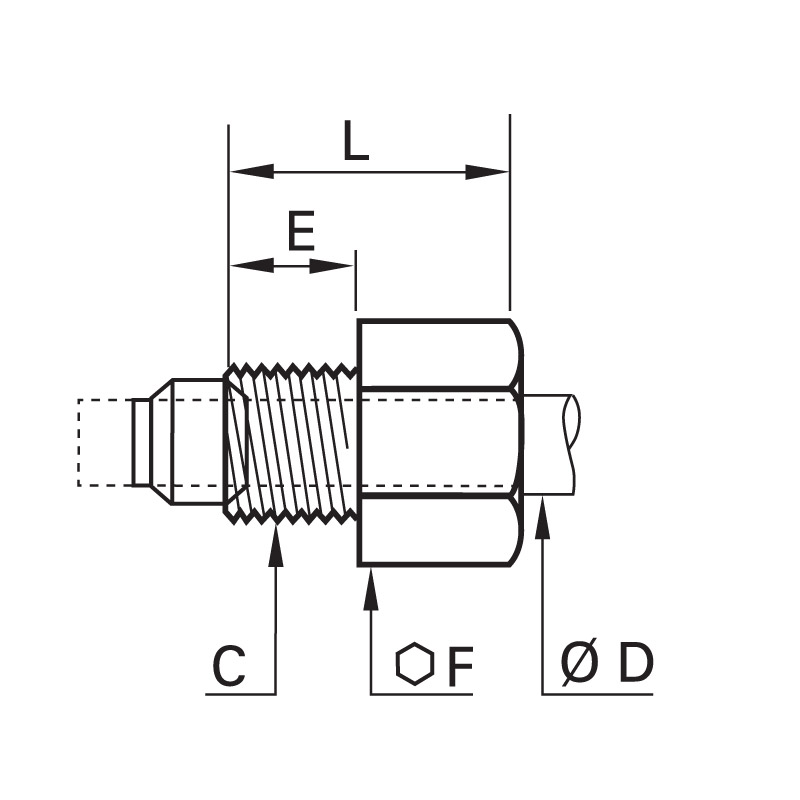

Product name	C	E	ØD	F	L	Price		Quantity
0112 04 00 Extended sleeve nut	M8x1	7	4 mm	10	13	€2.19	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0112 05 00 Extended sleeve nut	M10x1	7,5	5 mm	11	13,5	€2.13	This article is currently not available!
0112 06 00 Extended sleeve nut	M10x1	7,5	6 mm	11	13,5	€2.33	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0112 08 00 Extended sleeve nut	M12x1	8	8 mm	13	15	€2.87	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0112 10 00 Extended sleeve nut	M16x1,5	11	10 mm	17	18	€4.82	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0112 12 00 Extended sleeve nut	M18x1,5	11	12 mm	19	18	€5.00	Available in 30 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0112 14 00 Extended sleeve nut	M20x1,5	11	14 mm	22	18	€7.24	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "0112 - Male sleeve nut for standard olive"

Male nut for standard sleeve. More compact built compared to a male thread. Available from 4 to 14 mm o.d..

Material:	Brass
Maximum working pressure in bar:	550
max. temperature in °C:	250
min. temperature in °C:	-60
RoHS compliant:	Yes
Material body:	Brass

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
