0109 - Male stud elbows | maku Industrie

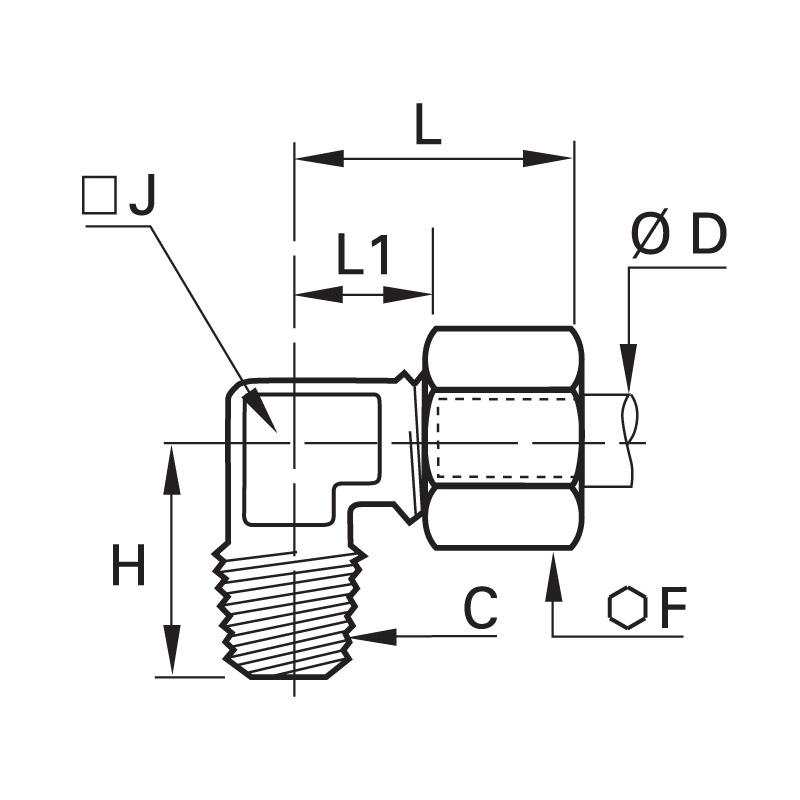

Preview: Technische Zeichnung 0109 04 10

Compression fittings made of brass, Male stud elbows

Product name	ØD	C	F	H	J	L max	L1	Price		Quantity
0109 04 10 Stud elbow	4 mm	R1/8"	10	17	8	19	9,5	€5.59	Delivery time: 3-4 workdays
0109 04 13 Stud elbow	4 mm	R1/4"	10	20	10	19	11	€6.89	Delivery time: 17-18 Workdays
0109 05 10 Stud elbow	5 mm	R1/8"	12	17,5	8	21	11	€6.72	Delivery time: 12-13 Workdays
0109 05 13 Stud elbow	5 mm	R1/4"	12	21,5	10	22	12	€10.50	Delivery time: 52-53 Workdays
0109 06 10 Stud elbow	6 mm	R1/8"	13	18	8	22	11	€5.62	Delivery time: 3-4 workdays
0109 06 11 Stud elbow	6 mm	NPT1/8"	13	18	8	22	11	€15.72	Delivery time: 7-8 Workdays
0109 06 13 Stud elbow	6 mm	R1/4"	13	21,5	10	22	12	€5.81	Delivery time: 3-4 workdays
0109 06 14 Stud elbow	6 mm	NPT1/4"	13	21,5	10	22	12	€10.34	Delivery time: 17-18 Workdays
0109 08 10 Stud elbow	8 mm	R1/8"	14	18,5	10	28	15	€6.13	Delivery time: 7-8 Workdays
0109 08 11 Stud elbow	8 mm	NPT1/8"	14	18,5	10	28	15	€14.91	Delivery time: 22-23 Workdays
0109 08 13 Stud elbow	8 mm	R1/4"	14	22	10	28	15	€6.28	Delivery time: 3-4 workdays
0109 08 14 Stud elbow	8 mm	NPT1/4"	14	22	10	28	15	€16.78	Delivery time: 17-18 Workdays
0109 08 17 Stud elbow	8 mm	R3/8"	14	24	12	28	15	€9.69	Delivery time: 12-13 Workdays
0109 10 13 Stud elbow	10 mm	R1/4"	19	25	12	30	14,5	€9.19	Delivery time: 3-4 workdays
0109 10 14 Stud elbow	10 mm	NPT1/4"	19	25	12	30	14,5	€22.15	Delivery time: 17-18 Workdays
0109 10 17 Stud elbow	10 mm	R3/8"	19	25,5	12	30	14,5	€11.06	Delivery time: 7-8 Workdays
0109 10 21 Stud elbow	10 mm	R1/2"	19	32	19	36	21	€18.10	Delivery time: 7-8 Workdays
0109 12 13 Stud elbow	12 mm	R1/4"	22	26	15	30	15	€12.25	Delivery time: 7-8 Workdays
0109 12 17 Stud elbow	12 mm	R3/8"	22	27	15	30	15	€13.63	Delivery time: 7-8 Workdays
0109 12 21 Stud elbow	12 mm	R1/2"	22	32	19	36	21	€18.37	Delivery time: 7-8 Workdays
0109 14 17 Stud elbow	14 mm	R3/8"	24	30	19	35	18	€20.52	Delivery time: 1-2 workdays
0109 14 21 Stud elbow	14 mm	R1/2"	24	32	19	35	18	€21.21	Delivery time: 12-13 Workdays
0109 15 17 Stud elbow	15 mm	R3/8"	24	30	19	35	18	€22.79	Delivery time: 22-23 Workdays
0109 15 21 Stud elbow	15 mm	R1/2"	24	32	19	35	18	€23.41	Delivery time: 22-23 Workdays
0109 16 17 Stud elbow	16 mm	R3/8"	27	30	19	39	21	€23.69	Delivery time: 22-23 Workdays
0109 16 21 Stud elbow	16 mm	R1/2"	27	33,5	19	39	21	€23.37	Delivery time: 7-8 Workdays
0109 16 27 Stud elbow	16 mm	R3/4"	27	36,5	23	41	23	€32.03	Delivery time: 22-23 Workdays
0109 18 21 Stud elbow	18 mm	R1/2"	30	35,5	23	41	21,5	€31.83	Delivery time: 12-13 Workdays
0109 18 27 Stud elbow	18 mm	R3/4"	30	36,5	23	41	21,5	€34.75	Delivery time: 22-23 Workdays
0109 20 21 Stud elbow	20 mm	R1/2"	32	36,5	23	42	21,5	€39.20	Delivery time: 22-23 Workdays
0109 20 27 Stud elbow	20 mm	R3/4"	32	38	23	42	21,5	€39.98	Delivery time: 22-23 Workdays
0109 22 27 Stud elbow	22 mm	R3/4"	36	40	27	50	30	€46.27	Delivery time: 7-8 Workdays
0109 22 34 Stud elbow	22 mm	R1"	36	44	27	50	30	€59.45	Delivery time: 52-53 Workdays
0109 25 27 Stud elbow	25 mm	R3/4"	41	43	27	54	30
0109 25 34 Stud elbow	25 mm	R1"	41	44	27	54	30	€71.17	Delivery time: 52-53 Workdays
0109 28 27 Stud elbow	28 mm	R3/4"	42	46	32	54	30
0109 28 34 Stud elbow	28 mm	R1"	42	48	32	54	30	€95.71	Delivery time: 52-53 Workdays

Single banjo elbow connection between tube and male thread. Available from 4 to 28 mm o.d.. more

Close menu

Product information "0109 - Male stud elbows"

Single banjo elbow connection between tube and male thread. Available from 4 to 28 mm o.d..

Maximum working pressure in bar:	550
Material body:	Brass
Material gripping ring:	Brass
Material union nut:	Brass
min. temperature in °C:	-60
max. temperature in °C:	250
Material:	Brass
RoHS compliant:	Yes

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
