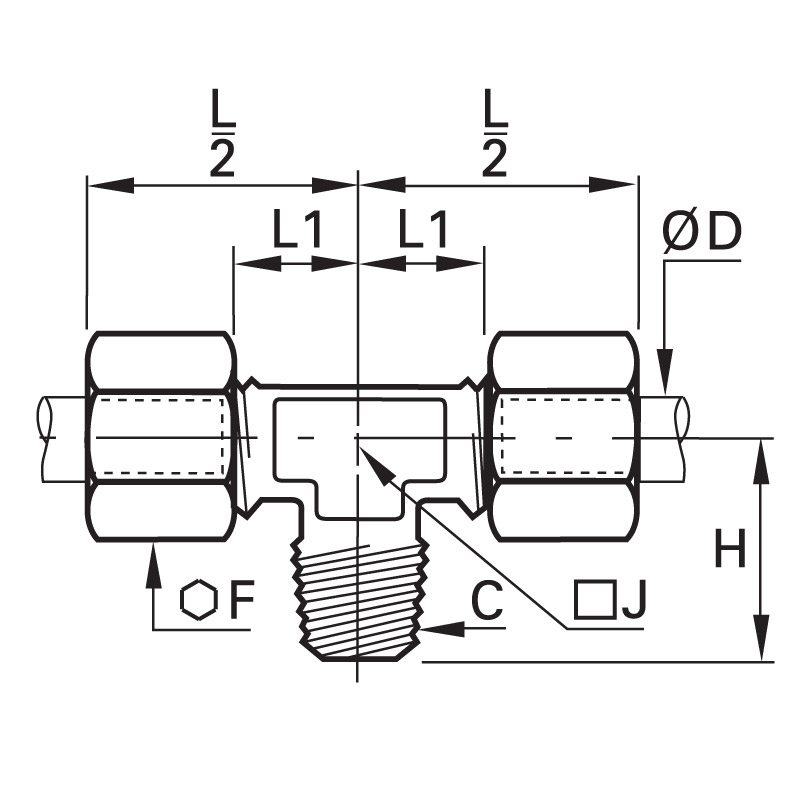

Connection of 2 tubes at a 90° angle to the male thread. Available from 4 to 22 mm o.d. in BSPT or NPT thread.
| Maximum working pressure in bar: | 550 |
| Material body: | Brass |
| Material gripping ring: | Brass |
| Material union nut: | Brass |
| min. temperature in °C: | -60 |
| max. temperature in °C: | 250 |
| Material: | Brass |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
