0107 - Equal cross

Compression fittings made of brass, Equal cross

From €12.76 *

Available, delivery time:

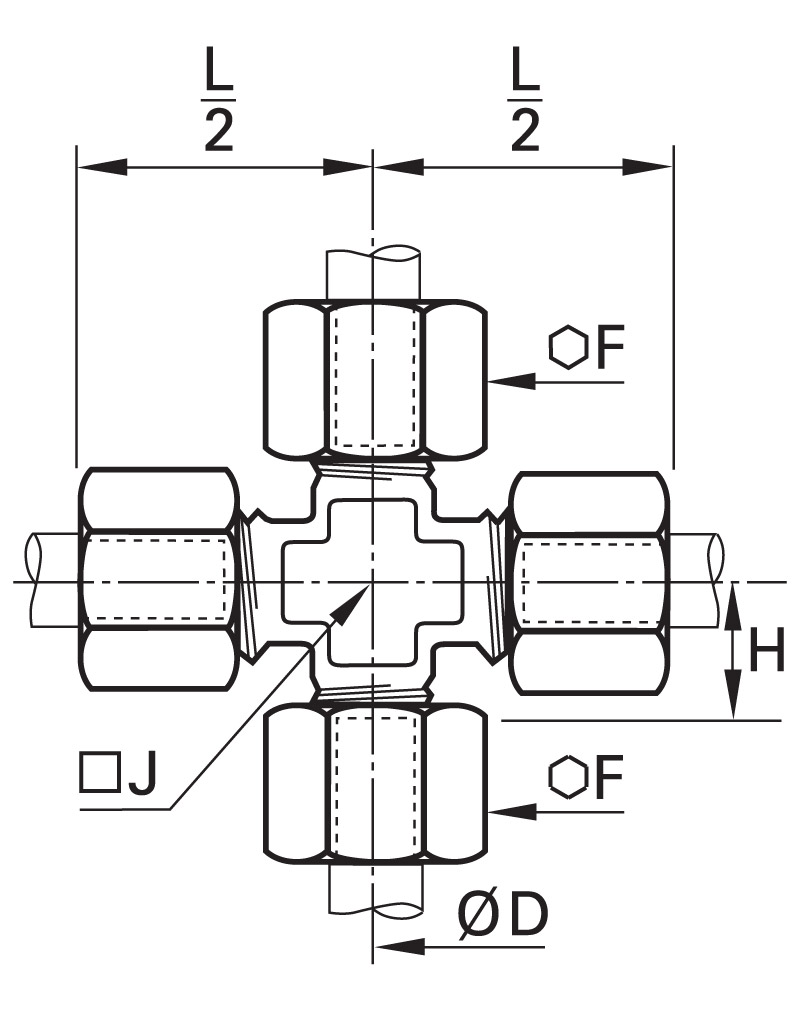

Product name	ØD	F	H	J	Price
0107 04 00 Equal cross	4 mm	10	9,5	8	Price on request	This article is currently not available!
0107 05 00 Equal cross	5 mm	12	11	8	€17.08	This article is currently not available!
0107 06 00 Equal cross	6 mm	13	11	8	€25.70	This article is currently not available!
0107 08 00 Equal cross	8 mm	14	15	11	€28.48	This article is currently not available!
0107 10 00 Equal cross	10 mm	19	14,5	14	€41.06	This article is currently not available!
0107 12 00 Equal cross	12 mm	22	15	15	€46.59	This article is currently not available!
0107 14 00 Equal cross	14 mm	24	18	20	€54.25	This article is currently not available!
0107 15 00 Equal cross	15 mm	24	18	20	Price on request	This article is currently not available!
0107 16 00 Equal cross	16 mm	27	21	20	€78.77	This article is currently not available!
0107 18 00 Equal cross	18 mm	30	21,5	25	€94.25	This article is currently not available!
0107 20 00 Equal cross	20 mm	32	21,5	25	Price on request	This article is currently not available!
0107 22 00 Equal cross	22 mm	36	29	27	€185.94	This article is currently not available!
0107 25 00 Equal cross	25 mm	41	29	27	Price on request	This article is currently not available!

Product information "0107 - Equal cross"

Connection of 4 tubes at 90° angles. Available from 4 to 25 mm o.d..

Material:	Brass
Maximum working pressure in bar:	550
max. temperature in °C:	250
min. temperature in °C:	-60
RoHS compliant:	Yes
Material body:	Brass
Material gripping ring:	Brass
Material union nut:	Brass

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
