0105 - Male stud couplings

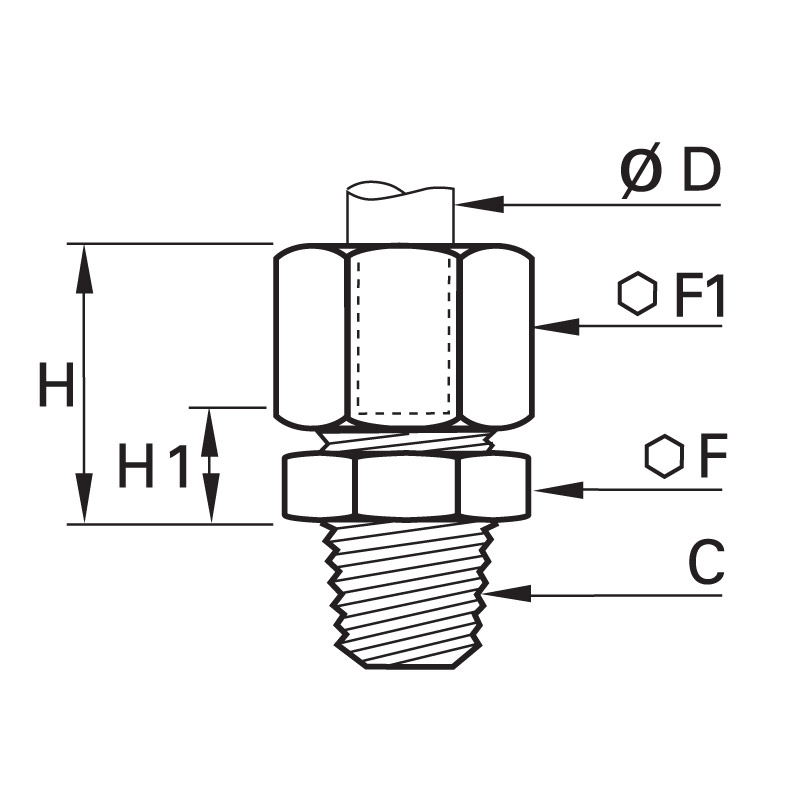

Preview: Technische Zeichnung 0105 04 10

Compression fittings made of brass, Male stud couplings

Product name	ØD	C	F	F1	H max	H1	Price		Quantity
0105 04 10 Male stud coupling	4 mm	R1/8"	10	10	17	7	€3.20	Delivery time: 3-4 workdays
0105 05 10 Male stud coupling	5 mm	R1/8"	11	12	17,5	7,5	€4.13	Delivery time: 1-2 workdays
0105 05 13 Male stud coupling	5 mm	R1/4"	14	12	17,5	7,5	€5.25	Delivery time: 22-23 Workdays
0105 06 10 Male stud coupling	6 mm	R1/8"	11	13	18	7,5	€3.57	Delivery time: 3-4 workdays
0105 06 11 Male stud coupling	6 mm	NPT1/8"	11	13	18	7,5	€5.69	Delivery time: 17-18 Workdays
0105 06 13 Male stud coupling	6 mm	R1/4"	14	13	18	7,5	€3.71	Delivery time: 3-4 workdays
0105 06 14 Male stud coupling	6 mm	NPT1/4"	14	13	18	7,5	€7.08	Delivery time: 17-18 Workdays
0105 06 17 Male stud coupling	6 mm	R3/8"	17	13	18	8,5	€4.62	Delivery time: 12-13 Workdays
0105 08 10 Male stud coupling	8 mm	R1/8"	13	14	19,5	7	€3.81	Delivery time: 7-8 Workdays
0105 08 11 Male stud coupling	8 mm	NPT1/8"	13	14	21	7	€8.62	Delivery time: 17-18 Workdays
0105 08 13 Male stud coupling	8 mm	R1/4"	14	14	19,5	7	€4.00	Delivery time: 3-4 workdays
0105 08 14 Male stud coupling	8 mm	NPT1/4"	14	14	18,5	7	€7.21	Delivery time: 17-18 Workdays
0105 08 17 Male stud coupling	8 mm	R3/8"	17	14	20,5	8	€5.62	Delivery time: 7-8 Workdays
0105 10 10 Male stud coupling	10 mm	R1/8"	17	19	24	9	€7.54	Delivery time: 17-18 Workdays
0105 10 13 Male stud coupling	10 mm	R1/4"	17	19	24	9	€5.70	Delivery time: 3-4 workdays
0105 10 14 Male stud coupling	10 mm	NPT1/4"	17	19	24	9	€12.44	Delivery time: 22-23 Workdays
0105 10 17 Male stud coupling	10 mm	R3/8"	17	19	24	9	€6.18	Delivery time: 3-4 workdays
0105 10 18 Male stud coupling	10 mm	NPT3/8"	17	19	24	9	€15.91	Delivery time: 1-2 workdays
0105 10 21 Male stud coupling	10 mm	R1/2"	22	19	25	10	€9.28	Delivery time: 3-4 workdays
0105 10 22 Male stud coupling	10 mm	NPT1/2"	22	19	25	10	€16.35	Delivery time: 22-23 Workdays
0105 12 13 Male stud coupling	12 mm	R1/4"	19	22	24	9	€9.79	Delivery time: 7-8 Workdays
0105 12 17 Male stud coupling	12 mm	R3/8"	19	22	24	9	€10.51	Delivery time: 3-4 workdays
0105 12 21 Male stud coupling	12 mm	R1/2"	22	22	25	10	€10.95	Delivery time: 3-4 workdays
0105 14 13 Male stud coupling	14 mm	R1/4"	22	24	25	8	€13.99	Delivery time: 22-23 Workdays
0105 14 17 Male stud coupling	14 mm	R3/8"	22	24	25	8	€13.64	Delivery time: 12-13 Workdays
0105 14 21 Male stud coupling	14 mm	R1/2"	22	24	26	9	€14.29	Delivery time: 3-4 workdays
0105 14 27 Male stud coupling	14 mm	R3/4"	27	24	27	10	€18.68	Delivery time: 22-23 Workdays
0105 15 17 Male stud coupling	15 mm	R3/8"	22	24	25	8	€14.54	Delivery time: 22-23 Workdays
0105 15 21 Male stud coupling	15 mm	R1/2"	22	24	26	9	€15.48	Delivery time: 17-18 Workdays
0105 16 13 Male stud coupling	16 mm	R1/4"	24	27	27	9,5	€11.83	Delivery time: 42-43 Workdays
0105 16 17 Male stud coupling	16 mm	R3/8"	24	27	27	9,5	€14.32	Delivery time: 22-23 Workdays
0105 16 21 Male stud coupling	16 mm	R1/2"	24	27	27	9,5	€14.79	Delivery time: 3-4 workdays
0105 16 27 Male stud coupling	16 mm	R3/4"	27	27	28	10,5	€20.52	Delivery time: 22-23 Workdays
0105 18 21 Male stud coupling	18 mm	R1/2"	27	30	30	10,5	€23.07	Delivery time: 7-8 Workdays
0105 18 27 Male stud coupling	18 mm	R3/4"	27	30	30	10,5	€26.25	Delivery time: 17-18 Workdays
0105 20 21 Male stud coupling	20 mm	R1/2"	30	32	32	11	€30.32	Delivery time: 1-2 workdays
0105 20 27 Male stud coupling	20 mm	R3/4"	30	32	32	11	€31.54	Delivery time: 3-4 workdays
0105 22 21 Male stud coupling	22 mm	R1/2"	32	36	33	11	€33.18	Delivery time: 17-18 Workdays
0105 22 27 Male stud coupling	22 mm	R3/4"	32	36	33	11	€29.48	Delivery time: 7-8 Workdays
0105 22 34 Male stud coupling	22 mm	R1"	36	36	33	11	€41.90	Delivery time: 12-13 Workdays
0105 25 27 Male stud coupling	25 mm	R3/4"	36	41	36	11	€47.71	Delivery time: 22-23 Workdays
0105 25 34 Male stud coupling	25 mm	R1"	36	41	36	11	€48.09	Delivery time: 52-53 Workdays
0105 28 27 Male stud coupling	28 mm	R3/4"	41	42	36	11	€61.95	Delivery time: 52-53 Workdays
0105 28 34 Male stud coupling	28 mm	R1"	41	42	36	11	€69.73	Delivery time: 17-18 Workdays

In-line connection of a tubing with male thread. Available from 4 to 28 mm o.d.. more

Close menu

Product information "0105 - Male stud couplings"

In-line connection of a tubing with male thread. Available from 4 to 28 mm o.d..

Maximum working pressure in bar:	550
Material body:	Brass
Material gripping ring:	Brass
Material union nut:	Brass
min. temperature in °C:	-60
max. temperature in °C:	250
Material:	Brass
RoHS compliant:	Yes

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
