0103 - Equal elbow

Compression fittings made of brass, Equal elbow

From €8.16 *

Available, delivery time:

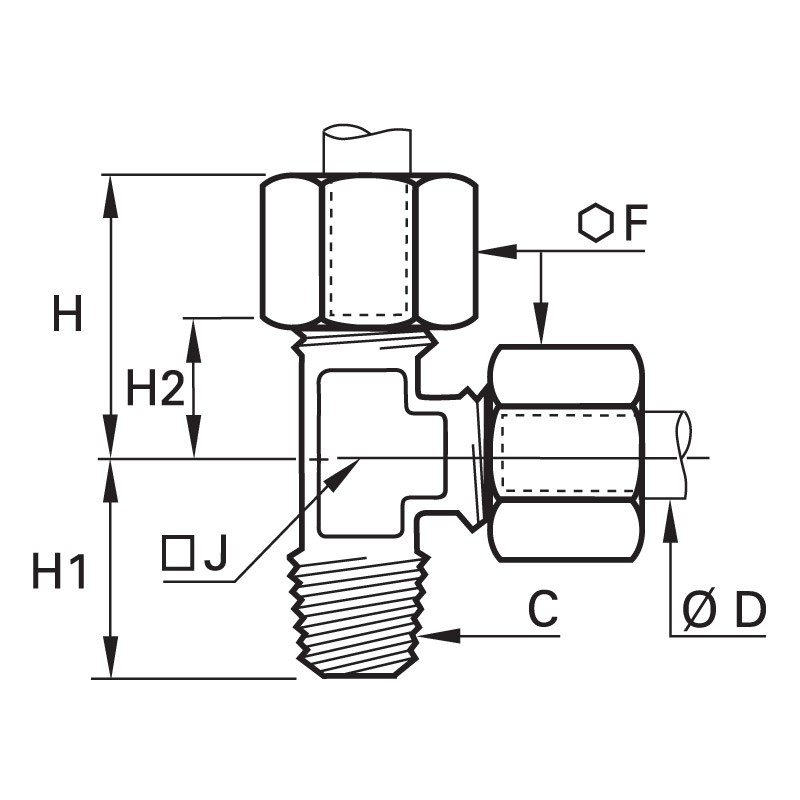

Product name	C	ØD	F	H max	H1	H2	J	Price		Quantity
0103 04 10 Stud run tee	R1/8"	4 mm	10	19	17	9,5	8	€11.45	Available in 50 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0103 05 10 Stud run tee	R1/8"	5 mm	12	21	17,5	11	8	Price on request	This article is currently not available!
0103 06 10 Stud run tee	R1/8"	6 mm	13	22	18	11	8	€13.19	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0103 06 13 Stud run tee	R1/4"	6 mm	13	27	21,5	16	10	€14.48	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0103 08 10 Stud run tee	R1/8"	8 mm	14	28	18,5	15	10	Price on request	This article is currently not available!
0103 08 13 Stud run tee	R1/4"	8 mm	14	28	22	15	10	€14.66	Available in 70 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0103 08 17 Stud run tee	R3/8"	8 mm	14	28	24	15	12	Price on request	This article is currently not available!
0103 10 13 Stud run tee	R1/4"	10 mm	19	30	25	14,5	12	€24.80	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0103 10 17 Stud run tee	R3/8"	10 mm	19	30	25,5	14,5	12	Price on request	This article is currently not available!
0103 12 13 Stud run tee	R1/4"	12 mm	22	30	26	15	15	€31.58	Available in 50 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0103 12 17 Stud run tee	R3/8"	12 mm	22	30	27	15	15	Price on request	This article is currently not available!
0103 14 17 Stud run tee	R3/8"	14 mm	24	35	30	18	19	Price on request	This article is currently not available!
0103 14 21 Stud run tee	R1/2"	14 mm	24	35	32	18	19	Price on request	This article is currently not available!
0103 15 17 Stud run tee	R3/8"	15 mm	24	35	30	18	19	Price on request	This article is currently not available!
0103 15 21 Stud run tee	R1/2"	15 mm	24	35	32	18	19	Price on request	This article is currently not available!
0103 16 17 Stud run tee	R3/8"	16 mm	27	39	30	21	19	Price on request	This article is currently not available!
0103 16 21 Stud run tee	R1/2"	16 mm	27	39	33,5	21	19	Price on request	This article is currently not available!
0103 18 21 Stud run tee	R1/2"	18 mm	30	41	35,5	21,5	23	Price on request	This article is currently not available!
0103 18 27 Stud run tee	R3/4"	18 mm	30	41	36,5	21,5	23	Price on request	This article is currently not available!
0103 20 27 Stud run tee	R3/4"	20 mm	32	42	38	21,5	23	Price on request	This article is currently not available!
0103 22 27 Stud run tee	R3/4"	22 mm	36	50	40	29	27	Price on request	This article is currently not available!

Product information "0103 - Equal elbow"

Connection of 2 tubes at a 90° angle with male thread. Available from 4 to 22 mm o.d., BSPT thread.

Material:	Brass
Maximum working pressure in bar:	550
max. temperature in °C:	250
min. temperature in °C:	-60
RoHS compliant:	Yes
Material body:	Brass
Material gripping ring:	Brass
Material union nut:	Brass

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
