0101 - Male stud couplings

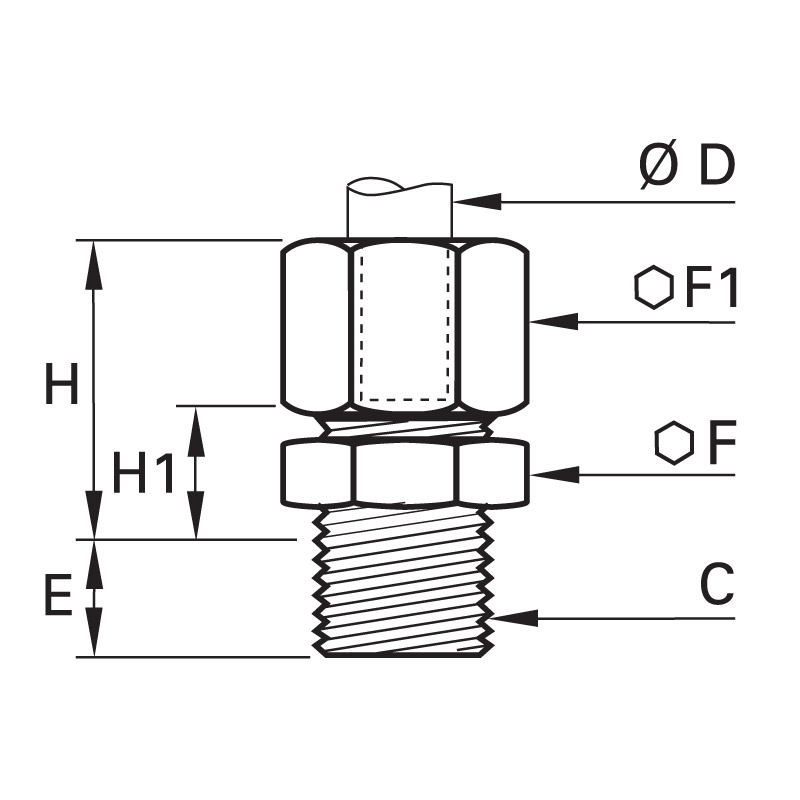

Preview: Technische Zeichnung 0101 04 10

Compression fittings made of brass, Male stud couplings

Product name	ØD	C	E	F	F1	H max	H1	Price		Quantity
0101 04 10 Male stud coupling	4 mm	G1/8"	6,5	13	10	16,5	8	€5.08	Delivery time: 12-13 Workdays
0101 04 10 39 Male stud coupling	4 mm	G1/8"	5,5	13	10	17,5	9	€5.74	Delivery time: 22-23 Workdays
0101 04 19 Male stud coupling	4 mm	M5x0,8	5	10	10	16,5	8	€5.77	Delivery time: 12-13 Workdays
0101 04 55 Male stud coupling	4 mm	M7x1	6,5	10	10	16,5	7,5	€5.40	Delivery time: 52-53 Workdays
0101 04 56 Male stud coupling	4 mm	M8x1	6,5	11	10	16,5	7,5	€5.25	Delivery time: 12-13 Workdays
0101 05 10 Male stud coupling	5 mm	G1/8"	6,5	13	12	17,5	8,5	€4.99	Delivery time: 22-23 Workdays
0101 05 10 39 Male stud coupling	5 mm	G1/8"	5,5	13	12	18,5	9,5	€5.25	Delivery time: 52-53 Workdays
0101 05 56 Male stud coupling	5 mm	M8x1	6,5	11	12	17,5	8	€7.56	Delivery time: 22-23 Workdays
0101 05 60 Male stud coupling	5 mm	M10x1	6,5	14	12	17,5	8,5	€8.14	Delivery time: 42-43 Workdays
0101 06 10 Male stud coupling	6 mm	G1/8"	6,5	13	13	18	8,5	€5.56	Delivery time: 1-2 workdays
0101 06 10 39 Male stud coupling	6 mm	G1/8"	5,5	13	13	19	9,5	€6.22	Delivery time: 1-2 workdays
0101 06 13 Male stud coupling	6 mm	G1/4"	8	17	13	18	9,5	€5.89	Delivery time: 12-13 Workdays
0101 06 13 39 Male stud coupling	6 mm	G1/4"	7	17	13	19	10,5	€6.63	Delivery time: 22-23 Workdays
0101 06 60 Male stud coupling	6 mm	M10x1	6,5	14	13	18	8,5	€7.16	Delivery time: 17-18 Workdays
0101 06 62 Male stud coupling	6 mm	M10x1,5	6,5	14	13	18	8,5	€8.68	Delivery time: 22-23 Workdays
0101 08 10 Male stud coupling	8 mm	G1/8"	6,5	13	14	19	8,5	€6.12	Delivery time: 12-13 Workdays
0101 08 10 39 Male stud coupling	8 mm	G1/8"	5,5	13	14	20	9,5	€6.63	Delivery time: 22-23 Workdays
0101 08 13 Male stud coupling	8 mm	G1/4"	8	17	14	19,5	9	€6.30	Delivery time: 12-13 Workdays
0101 08 13 39 Male stud coupling	8 mm	G1/4"	7	17	14	20,5	10	€6.89	Delivery time: 17-18 Workdays
0101 08 17 Male stud coupling	8 mm	G3/8"	11	22	14	20	10,5	€9.46	Delivery time: 22-23 Workdays
0101 08 17 39 Male stud coupling	8 mm	G3/8"	9,5	22	14	21,5	12	€9.94	Delivery time: 42-43 Workdays
0101 08 65 Male stud coupling	8 mm	M12x1	8	17	14	19,5	9	€10.31	Delivery time: 22-23 Workdays
0101 08 66 Male stud coupling	8 mm	M12x1,25	8	17	14	19,5	9	€10.85	Delivery time: 22-23 Workdays
0101 08 68 Male stud coupling	8 mm	M13x1,25	8	17	14	19,5	9	€13.11	Delivery time: 52-53 Workdays
0101 10 13 Male stud coupling	10 mm	G1/4"	8	17	19	24	11	€9.28	Delivery time: 12-13 Workdays
0101 10 13 39 Male stud coupling	10 mm	G1/4"	7	17	19	25	12	€10.75	Delivery time: 17-18 Workdays
0101 10 17 Male stud coupling	10 mm	G3/8"	11	22	19	24	11,5	€11.15	Delivery time: 7-8 Workdays
0101 10 17 39 Male stud coupling	10 mm	G3/8"	9,5	22	19	25,5	13	€15.57	Delivery time: 22-23 Workdays
0101 10 70 Male stud coupling	10 mm	M14x1,25	8	17	19	24	11	€14.43	Delivery time: 52-53 Workdays
0101 10 71 Male stud coupling	10 mm	M14x1,5	8	17	19	24	11	€14.58	Delivery time: 52-53 Workdays
0101 10 74 Male stud coupling	10 mm	M16x1,25	9	19	19	24	11	€21.60	Delivery time: 52-53 Workdays
0101 10 75 Male stud coupling	10 mm	M16x1,5	9	19	19	24	11	€19.71	Delivery time: 52-53 Workdays
0101 10 78 Male stud coupling	10 mm	M18x1,5	9	22	19	24	11,5	€22.15	Delivery time: 52-53 Workdays
0101 12 13 Male stud coupling	12 mm	G1/4"	8	19	22	24	11	€14.16	Delivery time: 17-18 Workdays
0101 12 13 39 Male stud coupling	12 mm	G1/4"	7	19	22	25	12	€15.57	Delivery time: 22-23 Workdays
0101 12 17 Male stud coupling	12 mm	G3/8"	11	22	22	24	11,5	€15.68	Delivery time: 12-13 Workdays
0101 12 17 39 Male stud coupling	12 mm	G3/8"	9,5	22	22	25	13	€17.73	Delivery time: 22-23 Workdays
0101 12 21 Male stud coupling	12 mm	G1/2"	12	27	22	24	12	€17.21	Delivery time: 1-2 workdays
0101 12 21 39 Male stud coupling	12 mm	G1/2"	10,5	27	22	25	13,5	€19.17	Delivery time: 22-23 Workdays
0101 12 74 Male stud coupling	12 mm	M16x1,25	9	19	22	24	11	€16.48	Delivery time on request
0101 12 75 Male stud coupling	12 mm	M16x1,5	9	19	22	24	11	€20.75	Delivery time: 22-23 Workdays
0101 12 78 Male stud coupling	12 mm	M18x1,5	9	22	22	24	11,5	€22.82	Delivery time: 42-43 Workdays
0101 14 17 Male stud coupling	14 mm	G3/8"	11	22	24	25	10,5	€21.31	Delivery time: 17-18 Workdays
0101 14 17 39 Male stud coupling	14 mm	G3/8"	9,5	22	24	26,5	12	€22.16	Delivery time: 17-18 Workdays
0101 14 21 Male stud coupling	14 mm	G1/2"	12	27	24	25	11	€22.02	Delivery time: 1-2 workdays
0101 14 21 39 Male stud coupling	14 mm	G1/2"	10,5	27	24	26,5	12,5	€25.29	Delivery time: 17-18 Workdays
0101 14 78 Male stud coupling	14 mm	M18x1,5	9	22	24	25	10,5	€29.62	Delivery time: 52-53 Workdays
0101 14 80 Male stud coupling	14 mm	M20x1,5	10	24	24	25	11	€34.09	Delivery time: 52-53 Workdays
0101 15 17 Male stud coupling	15 mm	G3/8"	11	22	24	25	10,5	€22.11	Delivery time: 52-53 Workdays
0101 15 17 39 Male stud coupling	15 mm	G3/8"	9,5	22	24	26,5	12	€23.29	Delivery time: 52-53 Workdays
0101 15 21 Male stud coupling	15 mm	G1/2"	12	27	24	25	11	€23.79	Delivery time: 22-23 Workdays
0101 15 21 39 Male stud coupling	15 mm	G1/2"	10,5	27	24	26,5	12,5	€25.57	Delivery time: 17-18 Workdays
0101 15 78 Male stud coupling	15 mm	M18x1,5	9	22	24	25	10,5
0101 16 17 Male stud coupling	16 mm	G3/8"	11	22	27	27	12	€23.18	Delivery time: 22-23 Workdays
0101 16 17 39 Male stud coupling	16 mm	G3/8"	9,5	22	27	28,5	13,5	€26.64	Delivery time: 52-53 Workdays
0101 16 21 Male stud coupling	16 mm	G1/2"	12	27	27	27	12,5	€26.33	Delivery time: 7-8 Workdays
0101 16 21 39 Male stud coupling	16 mm	G1/2"	10,5	27	27	28,5	14	€29.39	Delivery time: 17-18 Workdays
0101 16 80 Male stud coupling	16 mm	M20x1,5	10	24	27	27	12,5	€31.78	Delivery time: 52-53 Workdays
0101 16 82 Male stud coupling	16 mm	M22x1,5	10	27	27	27	12,5	€32.05	Delivery time: 52-53 Workdays
0101 18 21 Male stud coupling	18 mm	G1/2"	12	27	30	29,5	12,5	€27.97	Delivery time: 7-8 Workdays
0101 18 21 39 Male stud coupling	18 mm	G1/2"	10,5	27	30	31	14	€30.57	Delivery time: 7-8 Workdays
0101 18 27 Male stud coupling	18 mm	G3/4"	13	32	30	29,5	13	€36.50	Delivery time: 22-23 Workdays
0101 18 27 39 Male stud coupling	18 mm	G3/4"	11,5	32	30	31	14,5	€42.09	Delivery time: 22-23 Workdays
0101 18 82 Male stud coupling	18 mm	M22x1,5	10	27	30	29,5	12,5	€44.09	Delivery time: 1-2 workdays
0101 18 83 Male stud coupling	18 mm	M24x1,5	11	30	30	29,5	13	€29.11	Delivery time on request
0101 20 27 Male stud coupling	20 mm	G3/4"	13	32	32	31	13	€48.20	Delivery time: 52-53 Workdays
0101 20 27 39 Male stud coupling	20 mm	G3/4"	11,5	32	32	32,5	14,5	€54.42	Delivery time: 52-53 Workdays
0101 22 27 Male stud coupling	22 mm	G3/4"	13	32	36	32	13	€49.23	Delivery time: 7-8 Workdays
0101 22 27 39 Male stud coupling	22 mm	G3/4"	11,5	32	36	32,5	14,5	€54.43	Delivery time: 17-18 Workdays
0101 22 34 Male stud coupling	22 mm	G1"	15	41	36	31	13,5	€60.13	Delivery time: 52-53 Workdays
0101 22 34 39 Male stud coupling	22 mm	G1"	13	41	36	33	15,5	€74.76	Delivery time: 1-2 workdays
0101 25 27 Male stud coupling	25 mm	G3/4"	13	36	41	35,5	13
0101 25 34 Male stud coupling	25 mm	G1"	15	41	41	35,5	13
0101 25 34 39 Male stud coupling	25 mm	G1"	13	41	41	37,5	15,5
0101 28 34 Male stud coupling	28 mm	G1"	15	41	42	35,5	13,5	€81.30	Delivery time: 52-53 Workdays
0101 28 34 39 Male stud coupling	28 mm	G1"	13	41	42	37,5	15,5	€111.87	Delivery time: 52-53 Workdays

In-line connection of a tubing with male thread. Available from 4 to 28 mm o.d., BSPT metric thread. more

Close menu

Product information "0101 - Male stud couplings"

In-line connection of a tubing with male thread. Available from 4 to 28 mm o.d., BSPT metric thread.

Maximum working pressure in bar:	550
Material seal ring:	Engineered polymer
Material body:	Brass
Material gripping ring:	Brass
Material union nut:	Brass
min. temperature in °C:	-60
max. temperature in °C:	250
Material:	Brass
RoHS compliant:	Yes

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
