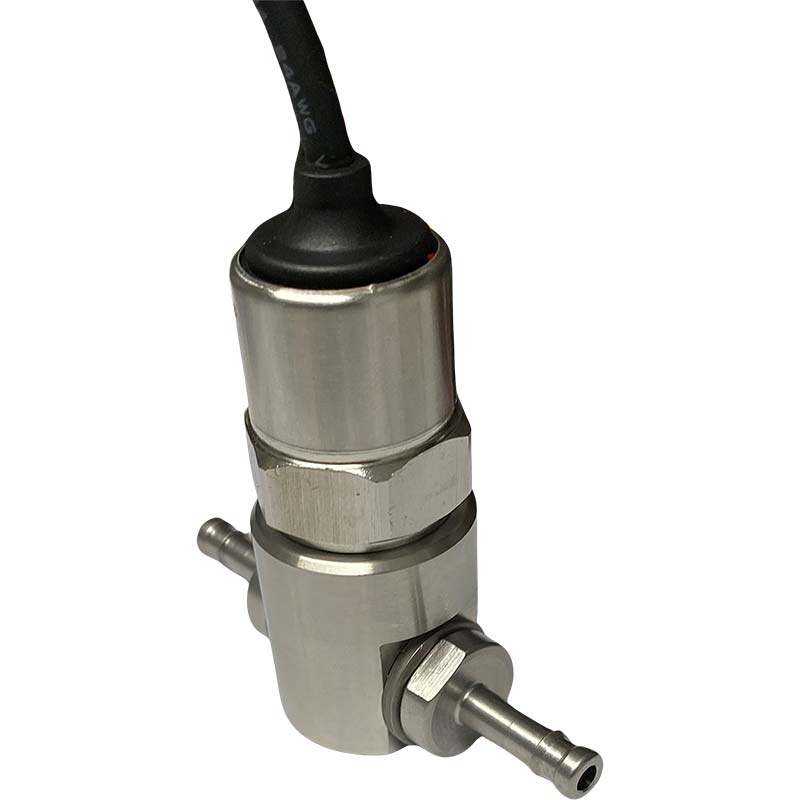

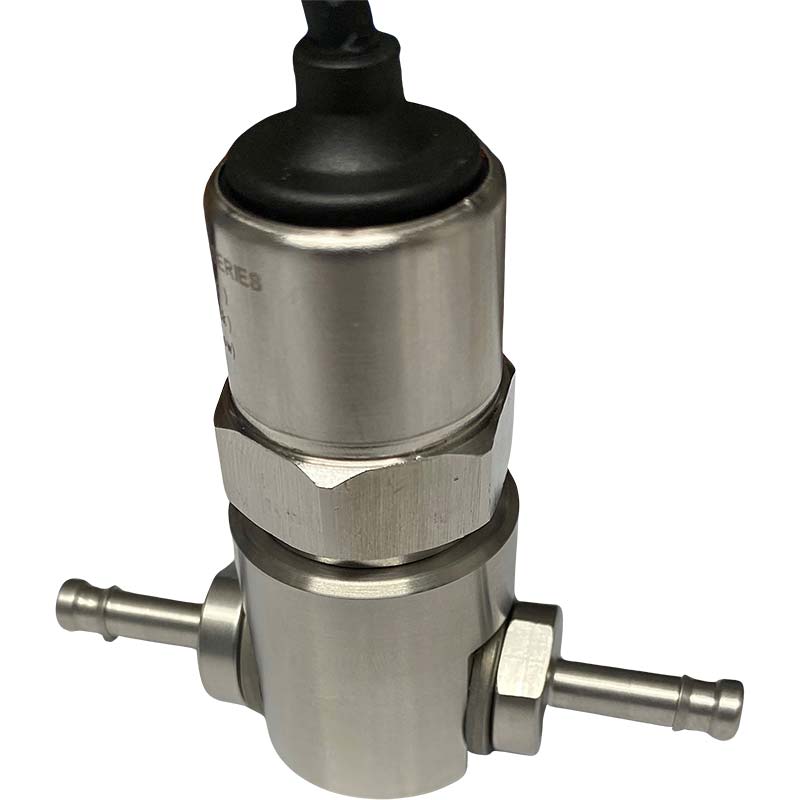

This adapter is a custom-made product for pressure sensor mods (e.g. Gaggiuino) of espresso machines. It is specially designed for the red Saeco hose with 5mm inner diameter to achieve the best possible fit.
Optimize your espresso machine and use our complete set to easily integrate your pressure sensor into the hose line, for example.

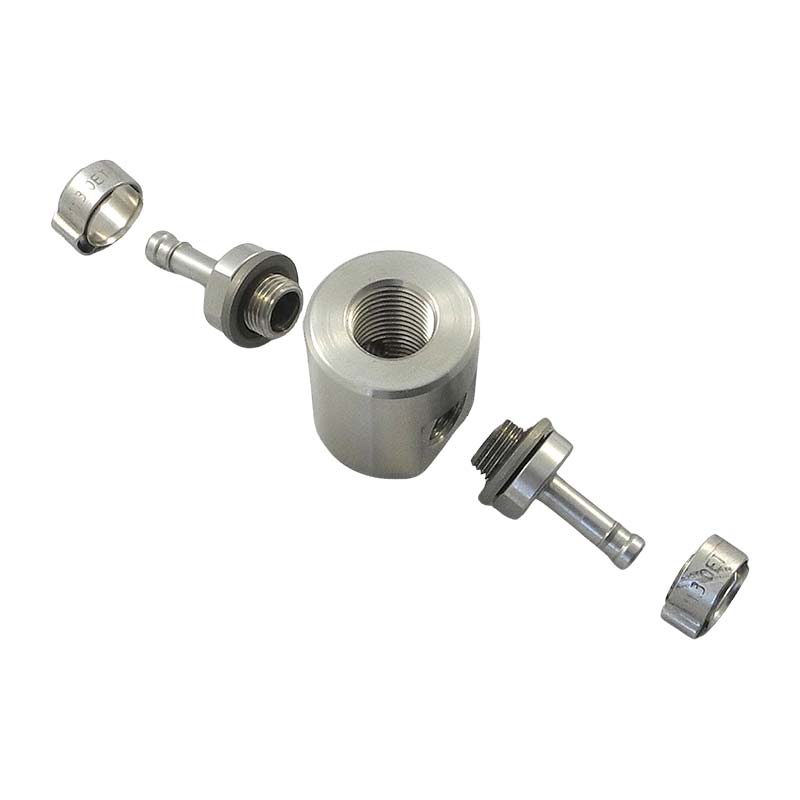

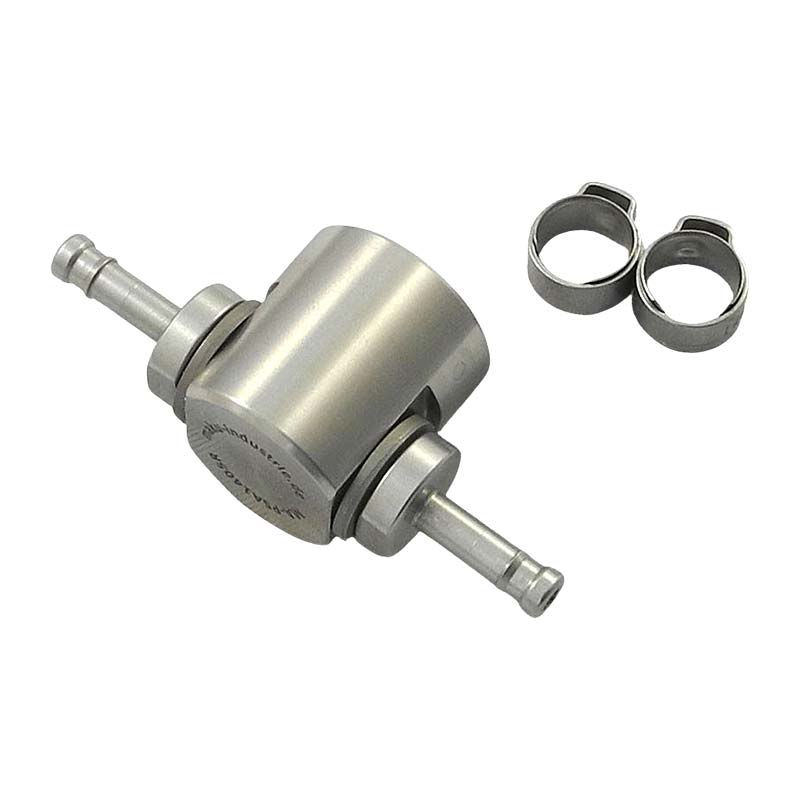

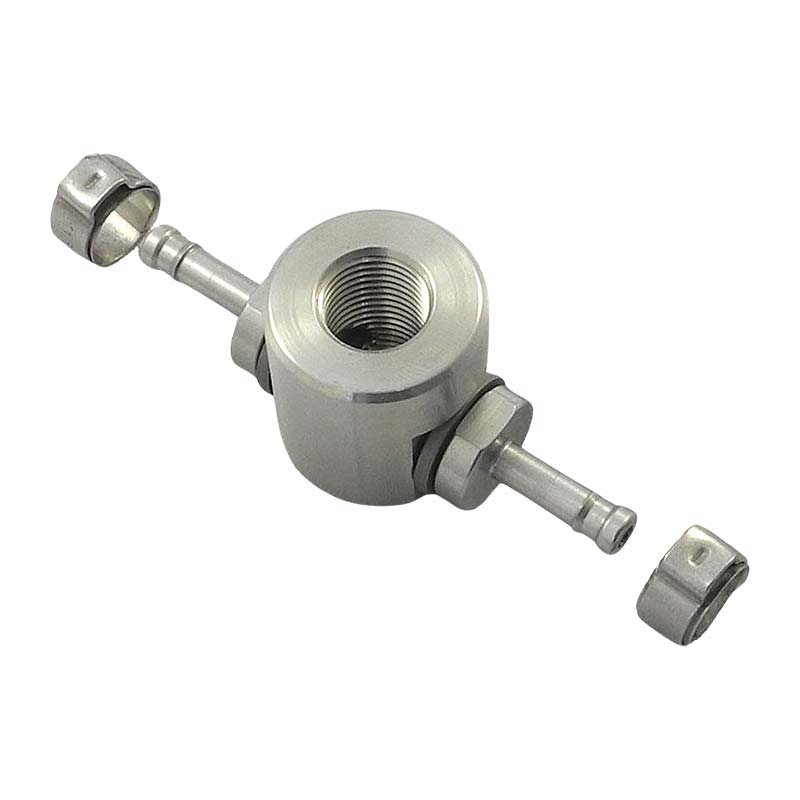

The adapter consists of 7 individual parts. All parts are made of stainless steel.
The main part has a 1/4" female thread (for the pressure sensor) and 2 x 1/8" female threads (for the hose barb fittings).
The hose nozzles fittings have a 1/8" male thread on a 5mm hose barb, suitable for the Saeco fabric hose 5x9mm.
Matching 1/8" seals and hose clamps are included.

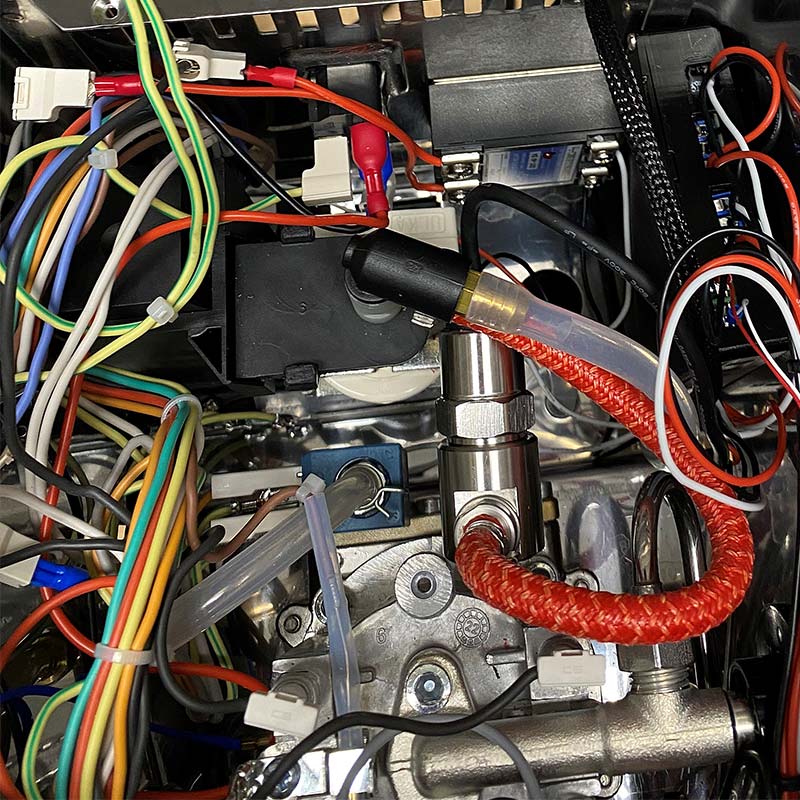

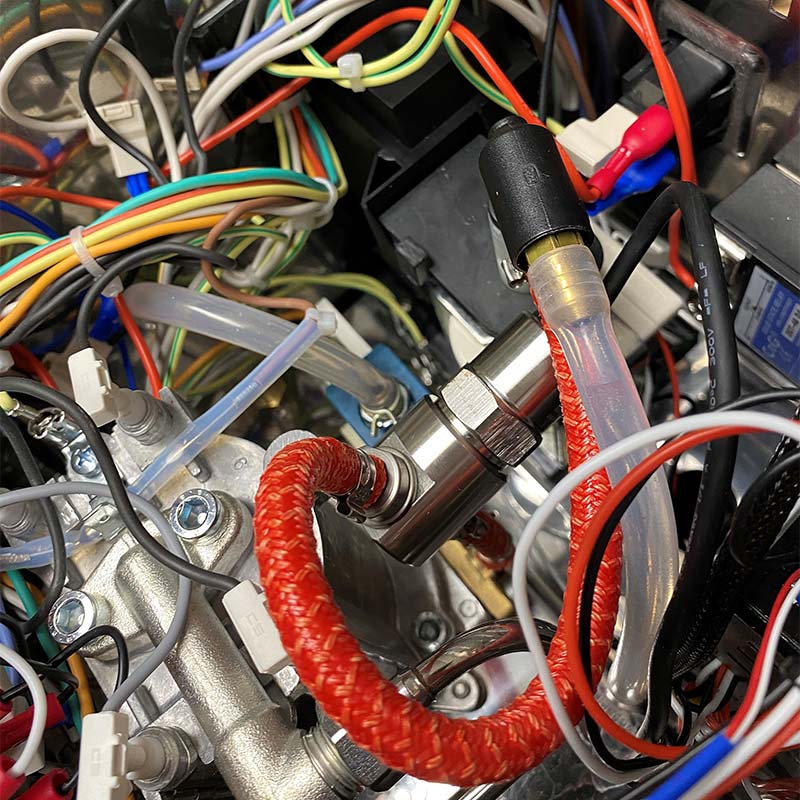

This means that the existing pressure hose only needs to be cut and the adapter can be inserted. No additional parts are required.
The pressure sensor is not part of the sale.
| Material: | Stainless steel |
| Weight in kg: | 0,095 |
| Item number: | MA-PSA1405R |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
3D Modell
