Carstick+ creates higher productivity
PARKER LEGRIS NEW DEVELOPMENT
Carstick+, the new addition to Parker Legris' proven Carstick® cartridge solution, provides an instant connection between housing and polymer tubing. Thanks to its patented gripping ring, Carstick+ can be removed from the housing without damaging the cavity. This means the cavity is reusable and waste is reduced. The installation process is 2-3 times faster than other solutions on the market. It comes in a ready-to-use packaging. The low plug-in effort and the small dimensions minimize energy consumption and space requirements.
Shorter insertion means immediate savings
- Productivity increase
One component product for reduced insertion time (2 to 3 times faster than existing cartridge solutions on the market.) - Low insertion effort
Insertion force <20 daN - Saving space
Space-saving thanks to compact design: 6 Carstick+ compared to 4 connections in the same place - Universal bore (without groove)
Carstick+ can be inserted into different materials without the need for special development.
Other helpful Carstick+ benefits
- Fluid integrity
The seal is the only component that comes into contact with the medium. You don't have to worry about the compatibility of the other components. - Removable
Carstick+ can be easily removed in case of incorrect insertion. The hole can be reused so that the device does not have to be scrapped. - Ready-to-use packaging
Space-saving thanks to compact design: 6 Carstick+ compared to 4 connections in the same place
Carstick+ product features quickly summarized

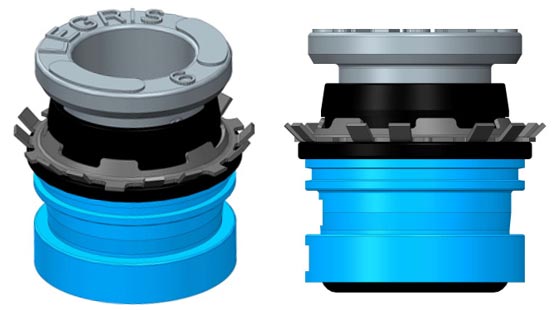

Parker Legris Carstick+ is a fully integrated cartridge solution that provides an instant connection between your case and 4mm and 6mm outer diameter polymer tubing.
Your housing requires a special mounting hole into which Carstick+ can be inserted. Carstick+ can then be connected to various polymer tubes.
Carstick+ can be inserted into a variety of housing materials, including amorphous (non-elastic) polymers.
The dimensions and tolerances of the mount are identical regardless of the housing material used.
Carstick+ cartridges can be easily removed if inserted incorrectly and your device can be reused.
Your housing requires a special mounting hole into which Carstick+ can be inserted. Carstick+ can then be connected to various polymer tubes.
Carstick+ can be inserted into a variety of housing materials, including amorphous (non-elastic) polymers.
The dimensions and tolerances of the mount are identical regardless of the housing material used.
Carstick+ cartridges can be easily removed if inserted incorrectly and your device can be reused.
These Carstick+ products exist
Carstick+ cartridge with EPDM seal
 | ØD | Articlenumber |
|---|---|---|
| 4 mm | 6300 04 01 24 | |
| 6 mm | 6300 06 01 24 |
Carstick+ cartdridge with FKM seal
| ØD | Articlenumber |
|---|---|---|
| 4 mm | 6300 04 01 26 | |
| 6 mm | 6300 06 01 26 |

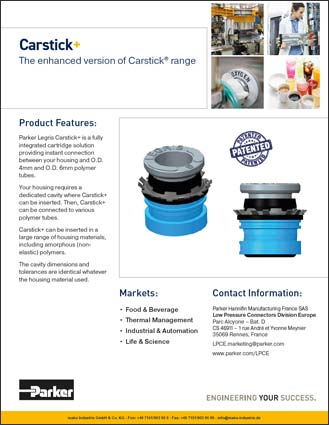

Detailed information on the new Carstick+ and normal Carstick cartridges can be found here:

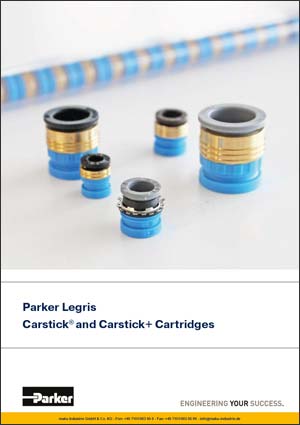

Brochure
